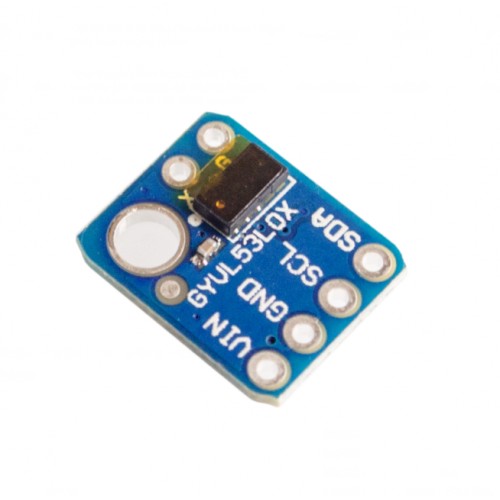

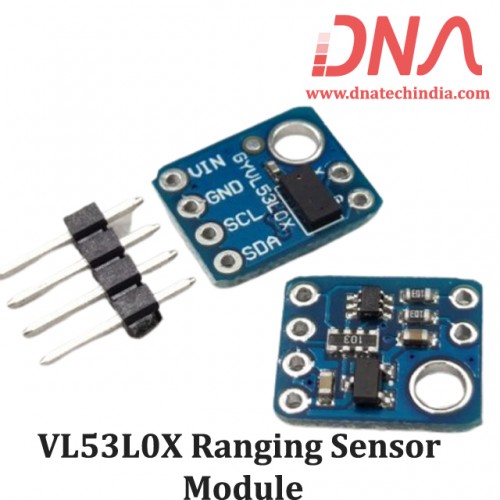

VL53L0X Ranging Sensor Module

VL53L0X Time-of-Flight Ranging Sensor is a new generation of laser-ranging modules that is housed in one of the smallest packages on the market.

The VL53LOX is a fully integrated sensor with an embedded infrared, eye-safe laser, advanced filters and ultra-fast photon detection array. The VL53L0X enhances the ST FlightSense™ family and opens the door for new applications with longer distance measurements, increased speed and accuracy.

The sensor can directly determine the distance to a target object, up to 2 meter (yes you read it right 2 meter) , even in challenging operating conditions and independent of target reflectivity. The VL53L0X is ideally suited for wireless and IoT and is designed with an ultra-low-power system architecture.

Features of VL53L0X

• Using the chip : VL53L0X

• Power supply : 2.8 to 5 v

• Communication : the IIC communication protocol (fully compatible with 3-5 v system)

• Module size : 10.5 mm * 13.3 mm

• Fully integrated miniature module

• Fast, accurate distance ranging

• Easy integration

• Operates in high IR ambient light levels

• Eye safe

Applications of VL53L0X

• Laser assisted auto-focus

• Enhances and speeds-up camera AF system performance, especially in difficult scenes (low light levels, low contrast) or fast moving video mode.

• Smart-phones advanced proximity sensor (distance in mm)

• User detection for personal computers/laptops and IoT (energy saving)

• Security (autonomous low power mode)

• 1D gesture recognition

• Robotics (obstacle detection)
