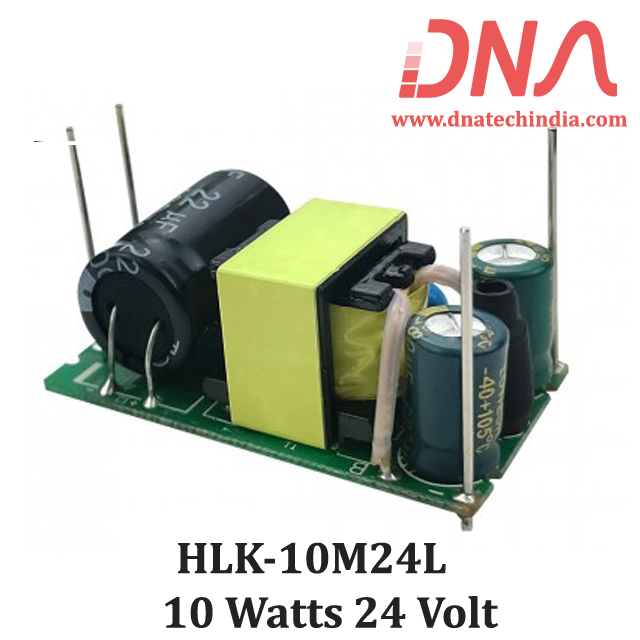

Hi-Link HLK-10M24L 10 W 24 V Isolated AC-DC Power Supply Module

Stock: 1
Availability: InStock priceValidUntil: 2026-11-24
Brand: Hi-Link
SKU: 2597 | DAC997

Rs. 275.53 (inc GST)
Rs.233.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Hi-Link HLK-10M24L 10 W 24 V Isolated AC-DC Power Supply Module

Hi-Link HLK-10M24L isolated AC-DC module with 10 W output, 24 VDC output and an 85–264 VAC input range.

The Hi-Link HLK-10M24L is an isolated AC-DC power supply module for PCB designs. It converts AC input to a 24 VDC output and provides 10 W of rated power. Its stated AC input range is 85–264 VAC, which suits a range of power designs.

The open-frame module uses natural cooling and a sealed, heat-conducting glue fill. Its design is stated to meet IP65 requirements. Short-circuit protection recovers automatically once the short is removed, while over-current protection helps manage excess output load. Low no-load loss helps limit power use when the output is not loaded.

Use this 24 V power supply module in smart home and automation control equipment, as well as communication equipment and instruments. Its isolated output provides a practical way to supply low-voltage circuits from an AC input.

DNA stocks Hi-Link products for electronics buyers who need a compact AC-DC supply for PCB designs. Explore the Hi-Link Power Supply Module range for your next project. Check other Hi-Link Power Supply Module that we have in stock

If you cannot find the part you need, contact DNA for import support. We support Indian electronics buyers with retail and bulk orders. Ask us about related parts such as DC to DC Converter ICs, MOSFETs, sensors and crystals. Contact Us

Features of Hi-Link HLK-10M24L 10 W 24 V Isolated AC-DC Power Supply Module

Isolated AC-DC power conversion for PCB designs
Sealed, heat-conducting glue fill
Short-circuit protection with automatic recovery
Over-current protection
Natural cooling

Specifications of Hi-Link HLK-10M24L 10 W 24 V Isolated AC-DC Power Supply Module

Rated output power: 10 W
Output voltage: 24 VDC (24 ±0.1 V at no load)
Output current: Long-time maximum ≥420 mA
Input voltage: 85–264 VAC or 70–350 VDC
Output ripple and noise: ≤70 mVp-p at rated input and full output load
Operating temperature: −25 to +60 °C
Dimensions: 44.5 × 25.4 × 20 mm
Efficiency: ≥69% at 110 VAC and ≥70% at 220 VAC at full output load

Applications of Hi-Link HLK-10M24L 10 W 24 V Isolated AC-DC Power Supply Module

Smart home
Automation control
Communication equipment
Instruments

Package Includes

1 X Hi-Link HLK-10M24L 10 W 24 V Isolated AC-DC Power Supply Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
