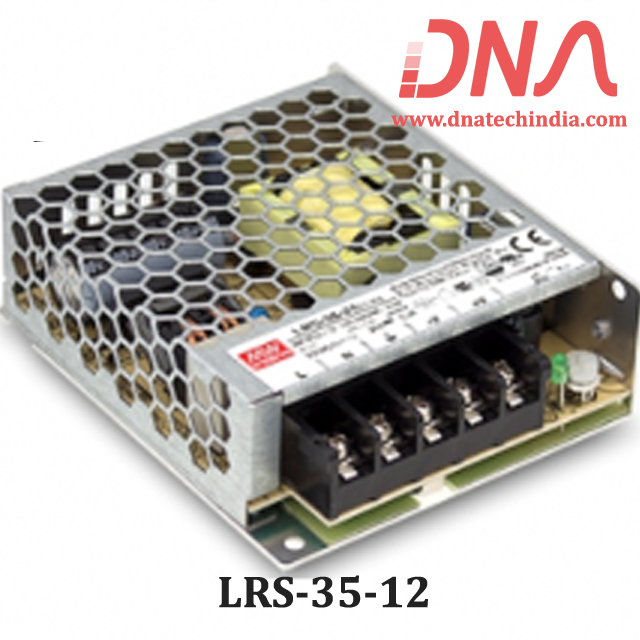

Meanwell LRS-35-12 SMPS

LRS-35-12: 35 Watt 12 Volt Meanwell SMPS

The Meanwell LRS-35-12 is a 35 Watt enclosed type SMPS with a compact 30 mm low-profile form factor. Designed for space-saving applications, it accepts universal AC input (85–264 VAC) or DC input (120–373 VDC) and delivers a regulated 12 Volt DC output at 3.0 Ampere. It features high efficiency (up to 88%), fanless cooling through free-air convection, and ultra-low power consumption at no-load (<0.2W). Built-in protection functions and compliance with international safety standards make it ideal for industrial automation, LED applications, and general electronics.

DNA is a trusted supplier of Meanwell SMPS in India, offering retail and bulk purchase options. We stock popular Meanwell products like AC-DC converters, DC-DC converters, DIN rail power supplies, and LED drivers, sourced directly from authorized distributors and ready for quick dispatch.

Can’t find Electronic Component you’re looking for? Our team can source it for you – just get in touch.

Features of Meanwell LRS-35-12 SMPS

• Universal AC input / Full range: 85–264 VAC, 120–373 VDC
• Output: 12 Volt DC, 3.0 Ampere, 36 Watt
• Compact low-profile design: 99 × 82 × 30 mm
• High efficiency: up to 88%
• No-load power consumption < 0.2 Watt
• Fanless design with free-air convection cooling
• Operating temperature: –30 °C to +70 °C
• Overload, overvoltage, short circuit, and over-temperature protection
• Withstands 300 VAC surge input for 5 seconds
• Built-in EMI filter, Class B
• Certified to: UL, CE, TUV, CCC, EAC, CB
• Complies with ErP (Energy-related Products) and DOE Level VI

Specifications of Meanwell LRS-35-12 SMPS

• Output Voltage: 12 Volt DC
• Rated Current: 3.0 Ampere
• Rated Power: 36 Watt
• Voltage Adj. Range: 10.2 Volt – 13.8 Volt
• Input Voltage Range: 85–264 VAC / 120–373 VDC
• Frequency Range: 47–63 Hz
• Efficiency (Typ.): 86%–88%
• No-Load Power Consumption: < 0.2 Watt
• Operating Temp. Range: –30°C to +70°C (derating above 50°C)
• Cooling Method: Natural air convection (Fanless)
• Dimensions (L×W×H): 99 × 82 × 30 mm
• Protections: Short circuit, overload, over-voltage, over-temperature
• Certifications: UL, TUV, CE, CB, CCC, EAC
• Standards: EN 55032 Class B, EN 60335-1, EN 61558-1, ErP, DOE Level VI

Applications of Meanwell LRS-35-12 SMPS

• Industrial control panels and machinery
• LED lighting systems and signage
• CCTV and security systems
• Automation and PLC-based systems
• Embedded electronics and devices
• Test and measurement instruments
• Communication equipment

Related Links

• Meanwell LRS-35-12 SMPS Datasheet
• Explore more Meanwell SMPS models

Package Include

• 1 x Meanwell LRS-35-12 SMPS
