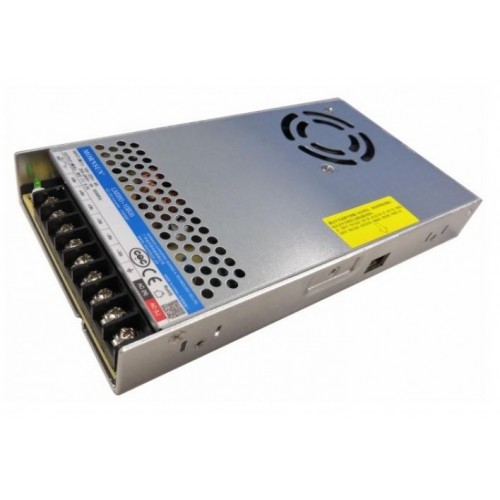

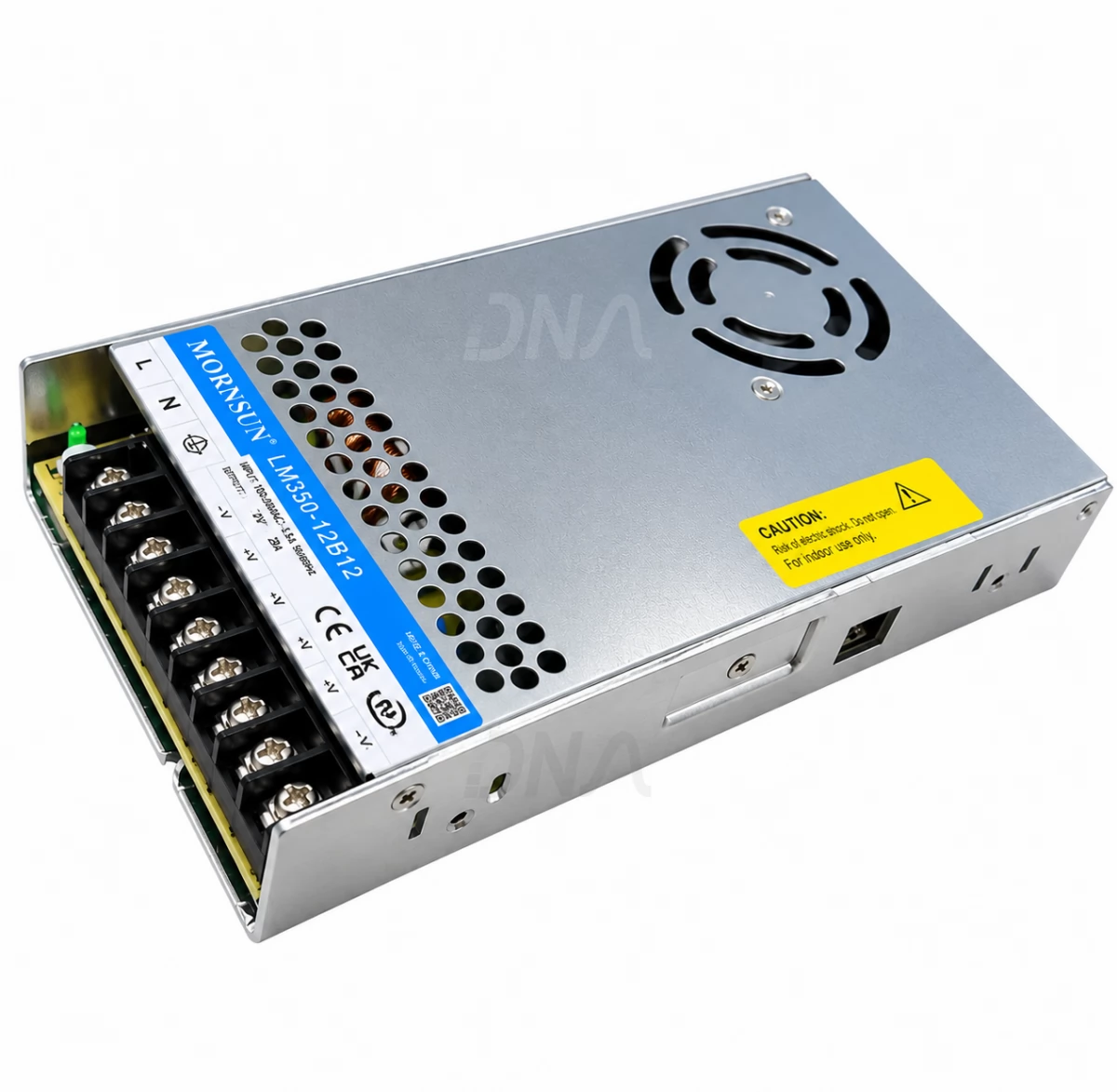

Mornson LM350-12B12 350W Enclosed AC-DC SMPS
-
Rs. 2,714.00 (inc GST)
Rs.2,300.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Mornson LM350-12B12 350W Enclosed AC-DC SMPS
Mornson LM350-12B12 350W Enclosed AC-DC SMPS
The Mornsun LM350-12B12 is a 350W, 12V DC SMPS designed for industrial automation, control systems, LED displays, and other applications requiring a stable DC output. It converts an AC input voltage range of 85V to 264V into a consistent 12V DC output. Built with protection features like short-circuit, overvoltage, and overcurrent protection, the LM350-12B12 ensures reliable operation and long-term durability, even in harsh industrial conditions. LM350-10B12 or LM350-12B12 is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability.
DNA solutions, Nashik has various types of Mornsun 's. Check out our complete collection of Mornsun's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of Mornson LM350-12B12 350W Enclosed AC-DC SMPS
- Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC
- DC input range: 240 ~ 373VDC(Switch in position of 230)
- Ultra low standby power consumption: < 0.75W @230VAC
- Operating ambient temperature range: – 30℃ ~ +70℃
- Compact size with 1U low profile
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
Specifications of Mornson LM350-12B12 350W Enclosed AC-DC SMPS
- Series: LM350-12B
- Part Number: LM350-12B12
- Output Voltage: 12V
- Output Current: 29A
- Output Power: 348 Watt
- Type: Enclosed Type Single Output
Package Includes
- 1 x Mornson LM350-12B12 350W Enclosed AC-DC SMPS
