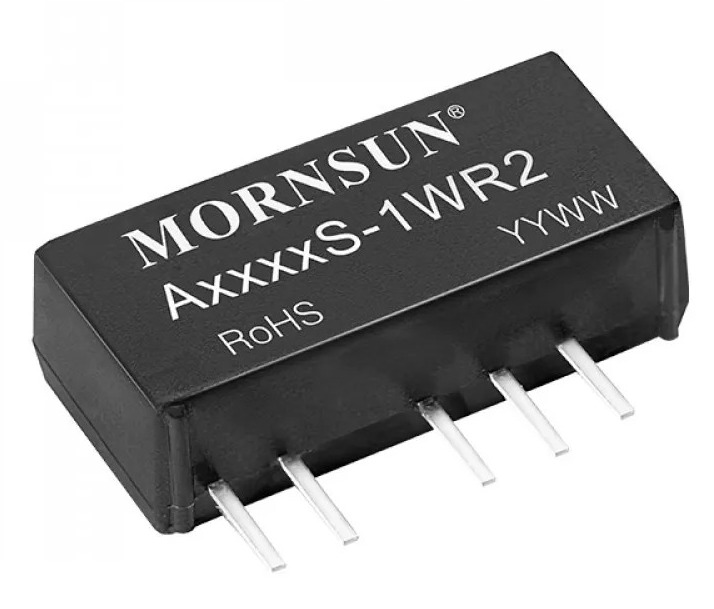

MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-19

  • Brand: Mornsun
  • SKU: 7517 | DAE465

Availability: NotInStock priceValidUntil: 2026-12-19

  • Rs. 272.58 (inc GST)
    Rs.231.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module

MORNSUN A2412S-1WR2 isolated DC/DC converter module with 24 VDC input, dual ±12 VDC output, 1 W rated power and 1500 VDC isolation.

The MORNSUN A2412S-1WR2 is an isolated DC/DC converter module that changes a nominal 24 VDC input into dual +12 VDC and -12 VDC outputs. It delivers 1 W of rated output power. The outputs are unregulated, so this module suits designs that do not need tight voltage regulation.
Input-to-output isolation helps separate the input and output sides of a circuit. The compact SIP package supports designs with limited board space, while continuous, self-recovery short-circuit protection helps the module resume operation after a short is removed. Its typical full-load efficiency is 80%.
Use this 24 V to dual 12 V converter in distributed power systems, pure digital circuits, low-frequency analog circuits and relay-driven circuits. The dual-output design provides positive and negative rails from one module.
DNA is a retailer of Mornsun components for engineers and electronics buyers. Browse our DC to DC Converter Modules for power design and repair needs. Check other DC to DC Converter Modules that we have in stock
For Indian electronics buyers, contact DNA if you cannot find a part. We support imports and retail or bulk orders. You can also ask about LCDs, HMI displays and DC to DC Converter ICs. Contact Us

Features of MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module

  • Provides input-to-output electrical isolation
  • Supplies positive and negative output rails
  • Uses an unregulated output design
  • Includes continuous, self-recovery short-circuit protection
  • Compact SIP construction supports space-limited boards

Specifications of MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module

  • Nominal input voltage: 24 VDC
  • Input voltage range: 21.6–26.4 VDC
  • Output voltage: +12 VDC and -12 VDC
  • Output current: ±42 mA maximum / ±5 mA minimum per selection guide
  • Rated output power: 1 W
  • Full-load efficiency: 76% minimum, 80% typical
  • Input-to-output isolation voltage: 1500 VDC minimum for a 1-minute electric-strength test
  • Operating temperature: -40°C to +105°C, with derating at 85°C and above

Applications of MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module

  • Distributed power supply systems
  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits

Related Links for MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module

Package Includes

  • 1 X MORNSUN A2412S-1WR2 Isolated DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
