• TINY85 Development Board

Product Images are shown for illustrative purposes only and may differ from actual product.

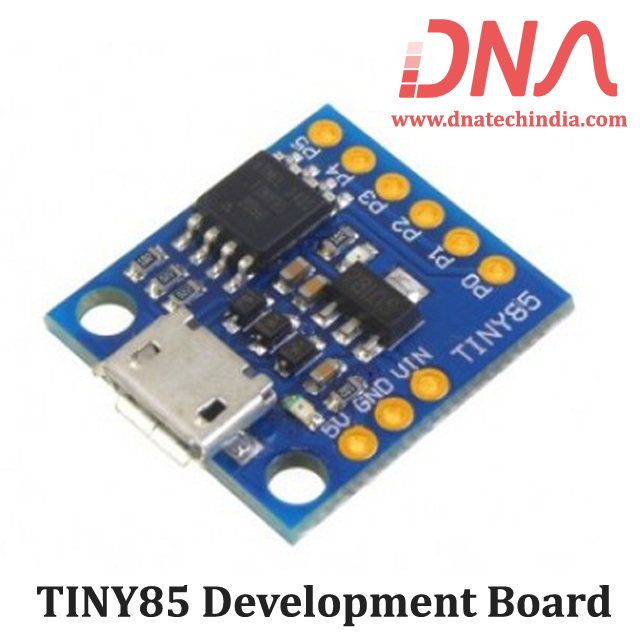

TINY85 Development Board

  • Stock: 2 - 3 Days
  • SKU: 0532 |
  • Rs. 354.00 (inc GST)
    Rs.300.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TINY85 Development Board

This tiny and low cost AVR development board is great for compact projects or projects that only requires a few IO pins.

Based on the 8 pin Atmel ATTiny85 processor it allows for an incredibly small form factor. It also has the advantage of including a micro usb interface that allows the processor to be programmed via a USB power without the need for any download adaptors. Additionally the board also comes pre-programmed with the Arduino bootloader and test blink sketch. Please note that to use with the Arduino development environment you will need a modified version of this software.
This development board is based on the DigiStump Digispark reference design and is released under the Creative Commons Attribution-ShareAlike 3.0 License available here:
http://creativecommons.org/licenses/by-sa/3.0/

We have Various sizes of Arduino Board. Check out our complete collection of Arduino Board.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of Tiny85 Board

  • 8K Flash memory
  • 6x Digital pins P0 - P5 (two shared for USB communication)
  • 4x ADC pins (shared with digital pins)
  • SPI interface (shared with digital pins)
  • I2C interface (shared with digital pins)
  • 3x PWM outputs (shared with digital pins)
  • Can be powered via USB, 5V, or VIN (7-12V) inputs
  • On board 5V 0.5A regulator for external supply
  • Power LED and user controlled LED

Pinout of Tiny85 Board

  • 5V......5V out when supplied by USB or Vin / or 5V supply in
  • GND...0V
  • VIN.....External supply in (7-12V)
  • P0......AREF / SDA
  • P1......PWM / D0
  • P2......D1 / ADC1 / SCK
  • P3......D2 / ADC2 / USB
  • P4......D3 / PWM / ADC3 / USB
  • P5......D4 / ADC4

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
