  • 4 Pin 128X64 Yellow Blue Color OLED Module

Product Images are shown for illustrative purposes only and may differ from actual product.

4 Pin 128X64 Yellow Blue Color OLED Module

  • Stock: 5
  • SKU: 1013 | DAA880
  • Rs. 337.48 (inc GST)
    Rs.286.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    3 + 332.42 7 + 327.36 10 + 322.29 20 + 317.23

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

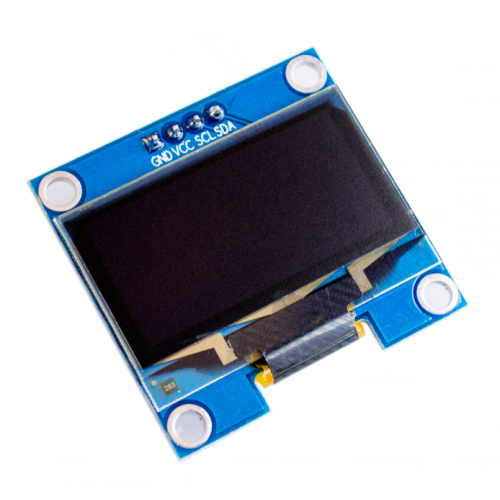

4 Pin 128X64 Yellow Blue Color OLED

This is a 0.96 inch white OLED display module.

The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 4 pin male header presoldered to board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electro luminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.

Features of 128 x 64 OLED Display

  • Size : 0.96 inch

  • Resolution : 128X64

  • Color : Yellow, Blue

  • Viewing angle : greater than 160 degrees

  • Supported platforms : for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips

  • Low power consumption : 0.04W during normal operation

  • Support wide voltage : 3.3V-5V DC

  • Working temperature : -30-80 degrees

  • Volume : 27MM * 27MM * 4.1MM

  • Driver IC : SSD1306

  • Communication : IIC, only two I / O ports

  • No font : The software takes word modulo

  • Backlight : OLED self light, no backlight

Interface pin for 4 PIN 128x64 OLED

  • VCC : 3.3 volts - 5 Volts
  • GND : Ground
  • SCL : Serial Clock
  • SDA : Serial Data
