DS1302ZN + Real Time Clock SMD IC (MAXIM MAKE)

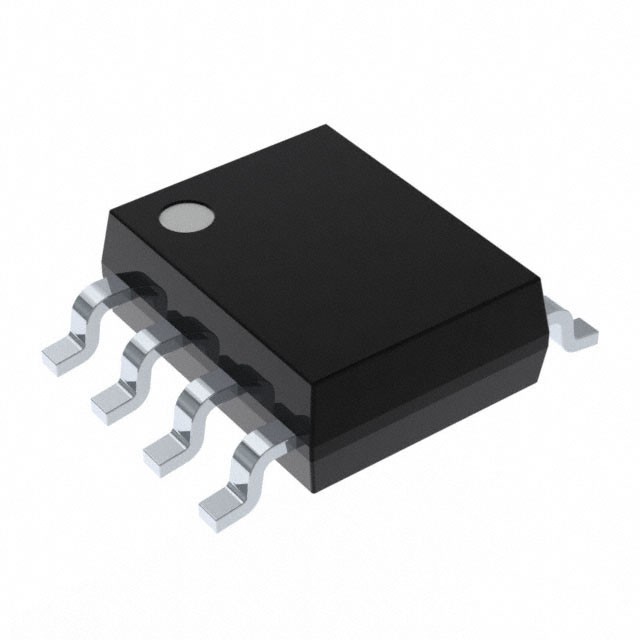

MAXIM DS1302ZN Real Time Clock SMD IC

DS1302ZN Real Time Clock IC with low power and serial interface; operates between 2.0V to 5.5V; accurate timekeeping with leap year support.

The MAXIM DS1302ZN Real Time Clock SMD IC is designed for low-power applications. This full binary-coded decimal (BCD) RTC counts seconds, minutes, hours, date, day, month, and year, ensuring accurate timekeeping. It features a simple serial interface, making integration into microcontroller-based systems straightforward. The DS1302ZN operates on a backup battery, maintaining time even during power failures, making it ideal for applications like embedded systems, data loggers, and digital clocks.

This SMD IC supports dual power pins for main and backup battery, ensuring reliability in various conditions. With a timekeeping current of less than 1 µA at 3V, its low power consumption is perfect for battery-powered applications. The operating temperature range of -40°C to +85°C allows the DS1302ZN to function in diverse environments, making it suitable for industrial time tracking systems and home automation.

For users seeking a dependable RTC, the MAXIM DS1302ZN is a robust choice. Its leap year compensation and accurate clock performance make it a valuable component for any project requiring precise time management. Explore how the DS1302ZN can enhance your electronic designs.

Explore a wide selection of high-quality RTC modules at DNA solutions. The MAXIM brand is known for reliable performance in the Components & IC's category. Check other Components & IC's that we have in stock.

If you are looking for specific electronic components, reach out to us. We can help you find hard-to-get parts and even import them if necessary. We support retail and bulk orders. Consider also our options for Digital ICs, Programmers, Development Boards, IGBTs, Transistors, and DC to DC Converter ICs. Contact Us.

Features of MAXIM DS1302ZN Real Time Clock SMD IC

• Real-time clock for date and time
• Leap year compensation
• Single-wire serial interface
• Low power consumption
• Dual power pins for backup battery
• MAXIM quality assurance

Specification of MAXIM DS1302ZN Real Time Clock SMD IC

• Package: SMD (SOIC-8)
• Operating Voltage: 2.0V to 5.5V
• Timekeeping current: < 1 µA @ 3V
• Interface: Serial (SPI-like)
• Operating Temperature: -40°C to +85°C
• Clock accuracy: ±2 minutes/month (typical)

Applications of MAXIM DS1302ZN Real Time Clock SMD IC

• Digital clocks and watches
• Embedded systems with date/time logging
• Industrial time tracking systems
• Home automation and scheduling
• Battery-powered applications requiring RTC

Package Includes

• 1 X MAXIM DS1302ZN Real Time Clock SMD IC
