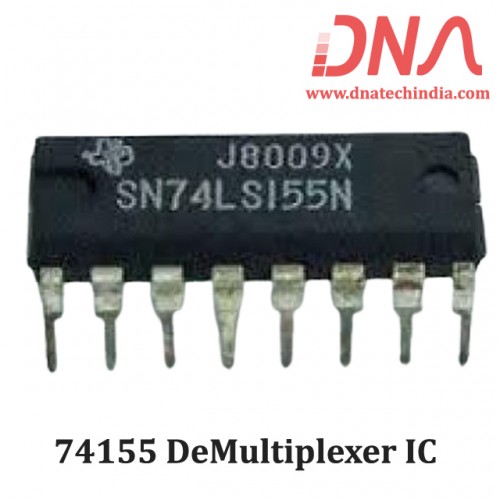

74155 DeMultiplexer IC


Write a review | 0 reviews

  • Stock: 37

    Availability: InStock priceValidUntil: 2026-09-10

  • SKU: 1797 | DAA280

Availability: InStock priceValidUntil: 2026-09-10

  • Rs. 112.10 (inc GST)
    Rs.95.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

74155 DeMultiplexer IC

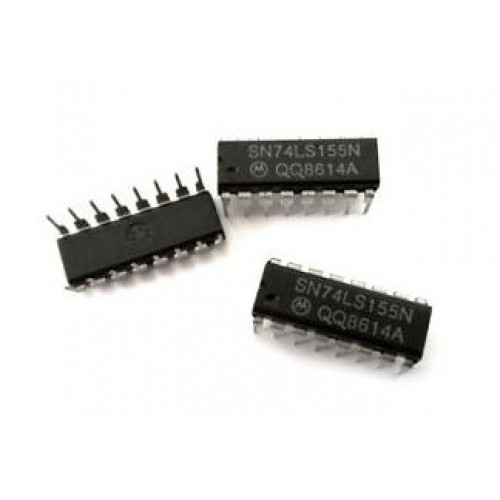

SN74155 Dual 2-Line To 4-Line Decoders, Demultiplexers

These monolithic transistor-transistor-logic (TTL) circuits feature dual 1-line-to-4-line demultiplexers with individual strobes and common binary-address inputs in a single 16-pin package. When both sections are enabled by the strobes, the common binary-address inputs sequentially select and route associated input data to the appropriate output of each section.

The individual strobes permit activating or inhibiting each of the 4-bit sections as desired. Data applied to input 1C is inverted at its outputs and data applied at 2C is not inverted through its outputs. The inverter following the 1C data input permits use as a 3-to-8-line decoder or 1-to-8-line demultiplexer without external gating. Input clamping diodes are provided on all of these circuits to minimize transmission-line effects and simplify system design.

We have Various sizes of 7400 Series IC. Check out our complete collection of 7400 Series IC.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Functions of SN74LS155 : Dual 2-Line To 4-Line Decoders/Demultiplexers

  • Technology Family : LS
  • VCC (Min) (V) : 4.75
  • VCC (Max) (V) : 5.25
  • Voltage (Nom) (V) : 5
  • Configuration : 2:4
  • Type : Standard
  • IOL (Max) (mA) : 8
  • IOH (Max) (mA) : -0.4
  • Channels : 2
  • Rating : Catalog
  • Operating Temperature Range (C) : 0 to 70
  • F @ Nom Voltage (Max) (Mhz) : 35
  • ICC @ Nom Voltage (Max) (mA) : 10
  • tpd @ Nom Voltage (Max) (ns) : 27
  • Digital input leakage (Max) (uA) : 5
  • ESD Charged Device Model (kV) : 0.75
  • Bits : 4
  • ESD HBM (kV) : 2
