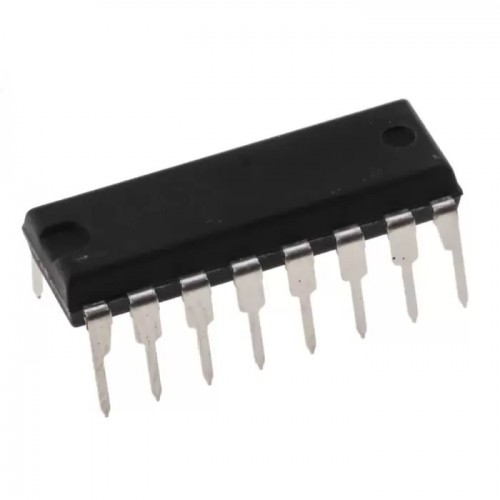

74191N 4-Bit Binary Counter DIP IC

74191N 4-Bit Binary Counter DIP IC

The 74191N is a synchronous 4-bit up/down binary counter with parallel load capability. It counts either up or down based on the logic level at the UP/DOWN control pin. All flip-flops are clocked simultaneously, ensuring high-speed and accurate counting. The IC also supports presetting via parallel inputs and can be easily cascaded for multi-bit counting. Packaged in a 16-pin DIP, it's ideal for use in digital systems requiring precise counting or sequencing.

DNA solutions, Nashik has various types of Counter IC's. Check out our complete collection of Counter IC's.

• 4-bit synchronous up/down binary counter

• Parallel load function for preset values

• Clear and clock inputs

• Up/Down control input

• DIP-16 package

Specifications of 74191N 4-Bit Binary Counter DIP IC

• Type: Up/Down Binary Counter

• Bit Width: 4-bit

• Supply Voltage: 4.75V to 5.25V

• Max Clock Frequency: ~25 MHz

• Package: DIP-16

• Operating Temperature: 0°C to +70°C

Applications of 74191N 4-Bit Binary Counter DIP IC

• Timer circuits

• LED display driving

• Event counters

• Digital counters and clocks

Package Includes

      1 x 74191N 4-Bit Binary Counter DIP IC
