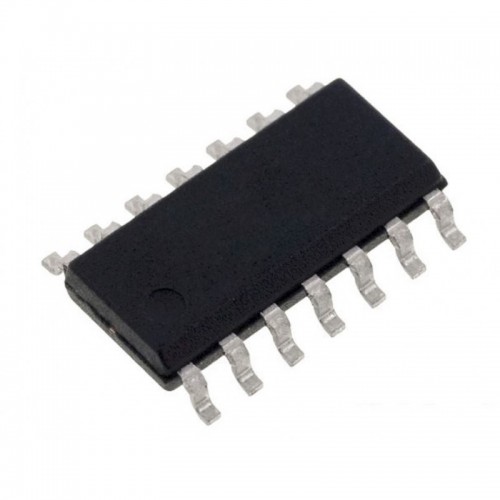

74HC165A RD1237 8 Bit Parallel In/Serial Out Shift Register IC

74HC165A RD1237 8-Bit Parallel In/Serial Out Shift Register IC

74HC165A RD1237 Shift Register IC with 8-bit parallel input, TTL compatibility, and low power consumption.

The 74HC165A RD1237 8-Bit Parallel In/Serial Out Shift Register IC is designed using advanced silicon-gate CMOS technology. This shift register operates with low power consumption and offers high noise immunity, making it suitable for various applications. It supports TTL-compatible inputs and can drive up to 10 LS-TTL loads. The data shifts from QA to QH upon clocking, ensuring reliable performance in microcontroller interfaces and data communication tasks.

With features like cascade capability, the 74HC165A RD1237 allows multiple ICs to be connected, handling wider data widths efficiently. The fast switching times enhance operational reliability in high-speed applications. Additionally, the Schmitt Trigger action improves noise immunity, making it ideal for consumer electronics and LED matrix controllers.

This reliable shift register is perfect for both hobbyists and professionals. Whether you are expanding signals or interfacing with microprocessors, the 74HC165A RD1237 meets diverse needs in the Indian electronics market. Explore our range for more options.

At DNA, we offer a wide selection of 7400 Series IC's including the trusted 74HC165A RD1237. Discover the quality and reliability that our products deliver. Check other 7400 Series IC's that we have in stock.

If you are searching for specific electronic components, DNA is here to assist you. We can import items not in stock and support both retail and bulk orders. Explore our range of IGBTs, Capacitors, Crystals, Sensors, Diodes, and Analog ICs. Contact Us

Features of 74HC165A RD1237 8-Bit Parallel In/Serial Out Shift Register IC

• Cascade Capability
• Schmitt Trigger Action
• Fast Switching Times
• Low Power Consumption

Specification of 74HC165A RD1237 8-Bit Parallel In/Serial Out Shift Register IC

• Technology: High-Speed CMOS
• Package Type: SMD
• Operating Range: 2.0V to 6.0V
• Logic Level Compatibility: TTL-compatible inputs
• Clock Frequency: Typical: Up to 30 MHz at 5V
• Latch Input: Data is latched via the load pin before being serialized

Applications of 74HC165A RD1237 8-Bit Parallel In/Serial Out Shift Register IC

• Microcontroller and Microprocessor Interfaces
• Data Communication
• LED Matrix Controllers
• Signal Expansion
• Consumer Electronics

Package Includes

• 1 X 74HC165A RD1237 8-Bit Parallel In/Serial Out Shift Register IC
