Product Images are shown for illustrative purposes only and may differ from actual product.

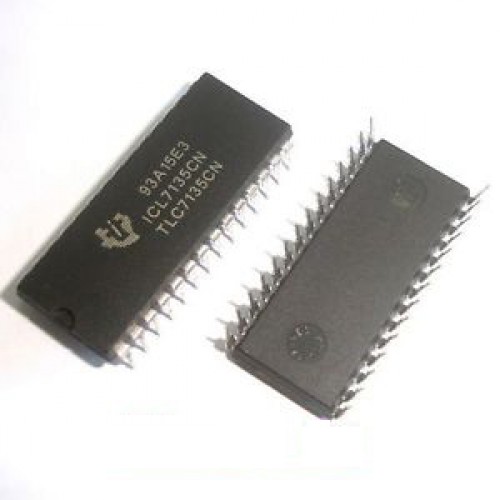

ICL7135 DPM IC


Write a review | 4 reviews

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-09-12

  • SKU: 1391 | DAA487

Availability: InStock priceValidUntil: 2026-09-12

  • Rs. 337.48 (inc GST)
    Rs.286.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ICL7135 DPM IC

ICL7135 4 1/2 digit A/D Converter with multiplexed BCD outputs

The Intersil ICL7135 precision A/D converter, with its multiplexed BCD output and digit drivers, combines dual-slope conversion reliability with ±1 in 20,000 count accuracy and is ideally suited for the visual display DVM/DPM market. The 2.0000 Volt full scale capability, auto-zero, and auto-polarity are combined with true ratiometric operation, almost ideal differential linearity and true differential input. All necessary active devices are contained on a single CMOS lC, with the exception of display drivers, reference, and a clock

The ICL7135 brings together an unprecedented combination of high accuracy, versatility, and true economy. It features auto-zero to less than 10µV, zero drift of less than 1µV/oC, input bias current of 10pA (Max), and rollover error of less than one count. The versatility of multiplexed BCD outputs is increased by the addition of several pins which allow it to operate in more sophisticated systems. These include STROBE, OVERRANGE, UNDERRANGE, RUN/HOLD and BUSY lines, making it possible to interface the circuit to a microprocessor or UART.

Features of IC7135 4 1/2 digit A/D Converter with BCD outputs

  • Accuracy Guaranteed to ±1 Count Over Entire ±20000 Counts (2.0000V Full Scale)
  • Guaranteed Zero Reading for 0V Input
  • 1pA Typical Input Leakage Current
  • True Differential Input
  • True Polarity at Zero Count for Precise Null Detection
  • Single Reference Voltage Required
  • Over range and Under range Signals Available for Auto-Range Capability
  • All Outputs TTL Compatible
  • Blinking Outputs Gives Visual Indication of Overrange
  • Six Auxiliary Inputs/Outputs are Available for Interfacing to UARTs, Microprocessors, or Other Circuitry
  • Multiplexed BCD Outputs
  • Pb-Free Available (RoHS Compliant)
