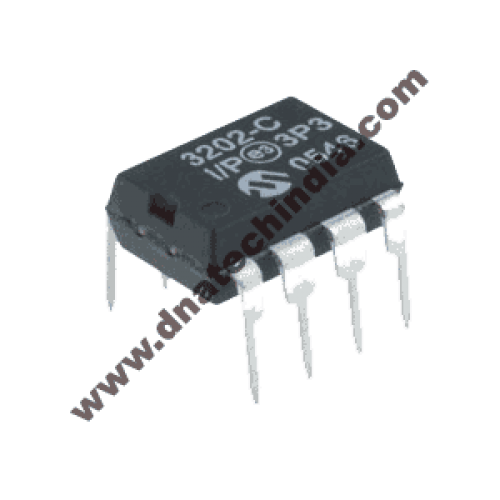

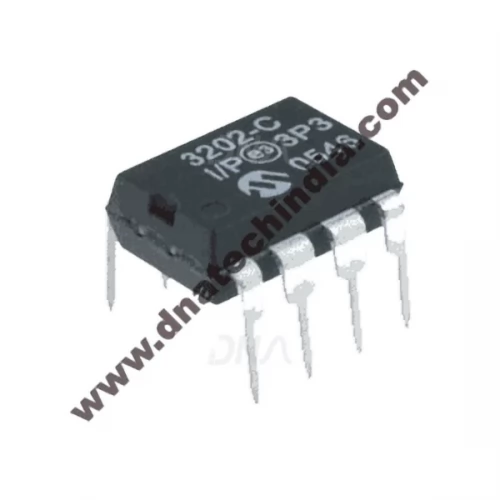

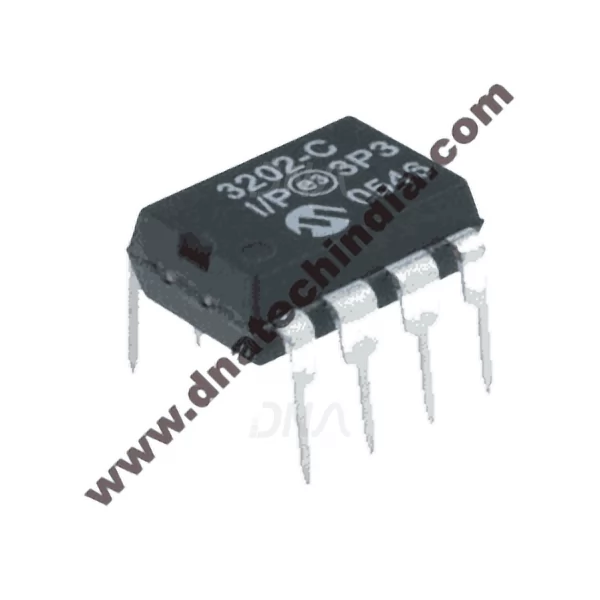

MCP3202: 12bit dual channel ADC with SPI interface.

The Microchip Technology Inc. MCP3202 is a successive approximation 12-bit Analog-to-Digital (A/D) Converter with on-board sample and hold circuitry. The MCP3202 is programmable to provide a single pseudo differential input pair or dual single-ended inputs. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3202-B) and ±2 LSB (MCP3202-C) versions. Communication with the device is done using a simple serial interface compatible with the SPI protocol.

The device is capable of conversion rates of up to 100 ksps at 5V and 50 ksps at 2.7V. The MCP3202 device operates over a broad voltage range (2.7V-5.5V). Low current design permits operation with typical standby and active currents of only 500 nA and 375μA, respectively. The MCP3202 is offered in 8-pin MSOP, PDIP, TSSOP and 150 mil SOIC packages.

Features of MCP3202

• 12-bit resolution
• ±1 LSB max DNL
• ±1 LSB max INL (MCP3202-B)
• ±2 LSB max INL (MCP3202-C)
• Analog inputs programmable as single-ended or pseudo-differential pairs
• On-chip sample and hold
• SPI serial interface (modes 0, 0 and 1,1)
• Single supply operation: 2.7V-5.5V
• 100 ksps max. sampling rate at VDD= 5V
• 50 ksps max. sampling rate at VDD= 2.7V
• Low power CMOS technology

            -500 nA typical standby current, 5μA max.
            -550 µA max. active current at 5V

• Industrial temp range: -40°C to +85°C
• 8-pin MSOP, PDIP

Download MCP3202 Datasheet
