Product Images are shown for illustrative purposes only and may differ from actual product.

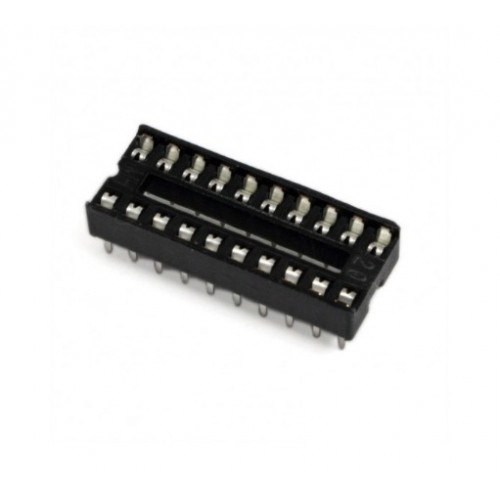

20 PIN NARROW SIL ROUND PIN IC BASE


Write a review | 0 reviews

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-03-07

  • Brand: Generic
  • SKU: 8001 | DAF815

Availability: InStock priceValidUntil: 2026-03-07

  • Rs. 27.75 (inc GST)
    Rs.23.52 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

20 PIN NARROW SIL ROUND PIN IC BASE

20 PIN NARROW SIL ROUND PIN IC BASE

A 20-pin narrow SIL (Single Inline) round pin IC base is a specialized connector used to mount integrated circuits (ICs) on a PCB (Printed Circuit Board). It provides a removable interface for ICs, which helps in easy replacement, testing, or repair without the need for soldering the IC directly onto the board.

DNA solutions, Nashik has various types of IC Base. Check out our complete collection of  IC Base.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 20 PIN NARROW SIL ROUND PIN IC BASE

  • Material: High-quality plastic housing, often made of thermoplastic for durability and insulation
  • Pin Design: Round pins ensure a reliable and low-resistance electrical connection
  • Pin Count: 20 pins arranged in a single inline configuration with uniform spacing
  • Socket Compatibility: Supports insertion of standard IC packages with 20 pins, such as DIP (Dual Inline Package) ICs
  • Durability: Designed for multiple insertions and removals without significant wear

Specifications of 20 PIN NARROW SIL ROUND PIN IC BASE

  • Pin Count: 20
  • Pin Pitch: Standard (2.54 mm)
  • Pin Type: Round pins with gold/tin plating
  • Mounting Type: Through-hole
  • Contact Plating: Gold or Tin (depending on the model)
  • Operating Temperature: -55°C to +125°C (varies by model)
  • Dimension (Approx.): Narrow profile for space-saving designs
  • Insertion/Removal Cycles: >1000 cycles

Applications of 20 PIN NARROW SIL ROUND PIN IC BASE

  • Electronics Prototyping
  • Repair and Maintenance
  • Industrial Control Systems
  • Educational Kits
  • Consumer Electronics
  • Test Equipment

    Package Includes

          1 x 20 PIN NARROW SIL ROUND PIN IC BASE

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
