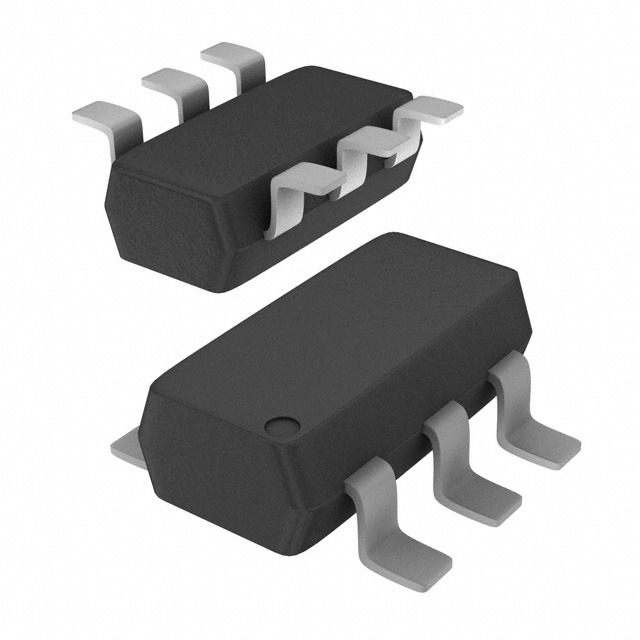

Product Images are shown for illustrative purposes only and may differ from actual product.

74LVC2G17GVQ100H TSOP-6 Dual non-inverting buffers with Schmitt trigger input

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-08-30
SKU: 7225 | DAG966

Rs. 47.79 (inc GST)
Rs.40.50 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

74LVC2G17 Dual Non-Inverting Buffer with Schmitt Trigger

74LVC2G17GVQ100H Dual buffers with Schmitt trigger input, 1.65V to 5.5V supply range, high noise immunity.

The 74LVC2G17 Dual Non-Inverting Buffer with Schmitt Trigger is designed for reliable signal transformation in mixed voltage environments. It offers a supply voltage range from 1.65V to 5.5V, making it versatile for various applications. This device excels in providing sharply defined, jitter-free outputs from slowly changing inputs. Features such as high noise immunity and 5V tolerant inputs ensure seamless integration in digital circuits.

Ideal for applications requiring signal conditioning, the 74LVC2G17 serves well as a buffer in noisy environments. It effectively handles level shifting and signal restoration, providing robust performance in digital communication systems. Its capability to interface with both 3.3V and 5V devices adds to its flexibility.

Explore the potential of the 74LVC2G17 Dual Non-Inverting Buffer for your projects. Its low power consumption and excellent latch-up performance make it a reliable choice for engineers. By using this component, you can enhance your circuit designs with improved signal integrity and efficiency.

Explore the versatility of the 7400 Series IC's at DNA. The 74LVC2G17 is perfect for digital applications. Check other 7400 Series IC's that we have in stock.

At DNA, we cater to all your electronic component needs. If you are looking for specific parts like Programmers, Microcontrollers, or Sensors, feel free to reach out. We can also import components not currently in stock and support both retail and bulk orders. Contact Us.

Features of 74LVC2G17 Dual Non-Inverting Buffer with Schmitt Trigger

Wide supply voltage range from 1.65 V to 5.5 V
5 V tolerant input/output
High noise immunity
CMOS low-power consumption
Latch-up performance exceeds 250 mA

Specification of 74LVC2G17 Dual Non-Inverting Buffer with Schmitt Trigger

Part Number: 74LVC2G17GVQ100H
Package Type: TSOP-6
Number of Buffers: 2

Applications of 74LVC2G17 Dual Non-Inverting Buffer with Schmitt Trigger

Wave shaping in noisy environments
Buffering in digital circuits
Level shifting between voltage domains
Signal integrity restoration in transmission lines

Package Includes

1 X 74LVC2G17GVQ100H TSOP-6 Dual non-inverting buffers with Schmitt trigger input

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
