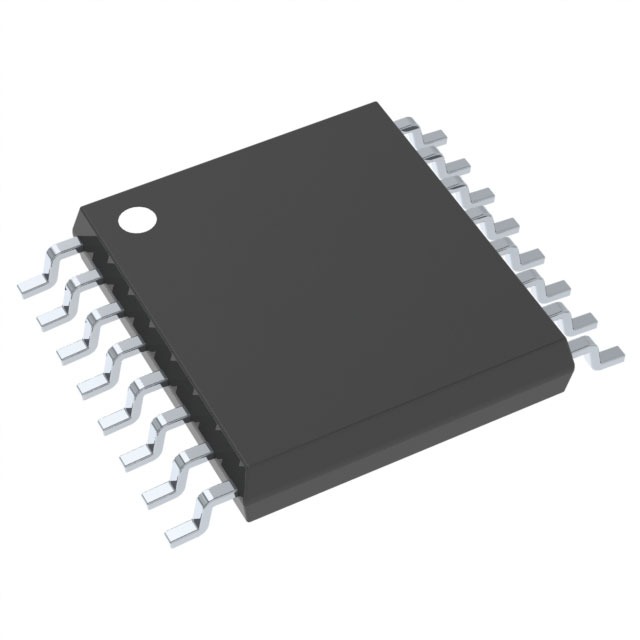

• ADS1219IPWR 4-Channel, 1-kSPS, 24-Bit, Delta-Sigma ADC With I2C Interface IC

Product Images are shown for illustrative purposes only and may differ from actual product.

ADS1219IPWR 4-Channel, 1-kSPS, 24-Bit, Delta-Sigma ADC With I2C Interface IC

  • Stock: Out Of Stock
  • SKU: 6058 | DAF177

Availability: NotInStock priceValidUntil: 2025-09-30

  • Rs. 643.81 (inc GST)
    Rs.545.60 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ADS1219IPWR 4-Channel,1-kSPS, 24-Bit, Delta-Sigma ADC With I2C Interface IC

ADS1219IPWR 4-Channel,1-kSPS,24-Bit,Delta-Sigma ADC With I2C Interface IC

The ADS1219IPWR is a precision, 24-bit, analog-to-digital converter (ADC) that includes all features necessary to implement the most common system monitoring functions, such as supply voltage, current, and temperature monitoring. The device features two differential or four single-ended inputs through a flexible input multiplexer (MUX), rail-to-rail input buffers, a programmable gain stage, a voltage reference, and an oscillator. The device includes buffers that allow high impedance sources to be directly connected to the device. A gain stage follows the buffers which provides selectable gains of 1 and 4. The ADS1219can perform conversions at data rates as high as1000 samples per second (SPS) with single-cycle settling. At 20 SPS, the digital filter offers simultaneous 50-Hz and 60-Hz rejection for noisy industrial applications.

DNA solutions, Nashik has various types of IC 's. Check out our complete collection of IC's .

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ADS1219IPWR 4-Channel,1-kSPS,24-Bit,Delta-Sigma ADC With I2C Interface IC

  • Easy to Use With Only One Register to Program
  • Current Consumption as Low as 315 µA (typ)
  • Wide Supply Range: 2.3 V to 5.5 V

  • Rail-to-Rail Input Buffers to Achieve High Input

  • Programmable Gains: 1 and 4
  • Programmable Data Rates: Up to 1 kSPS
  • Up to 20 Bits Effective Resolution
  • Simultaneous 50-Hz and 60-Hz Rejection at
  • 20 SPS With Single-Cycle Settling Digital Filter
  • Two Differential or Four Single-Ended Inputs
  • Internal 2.048-V Reference: 5 ppm/°C (typ) Drift
  • Internal 2% Accurate Oscillator

Applications of ADS1219IPWR 4-Channel,1-kSPS,24-Bit,Delta-Sigma ADC With I2C Interface IC

  • Battery Test Equipment
  • Gas Detectors
  • Heat Meters
  • Optical Modules
  • Wearable Fitness and Activity Trackers

Package Includes

  • 1 x ADS1219IPWR 4-Channel,1-kSPS,24-Bit,Delta-Sigma ADC With I2C Interface IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
