• CY7C1019CV33-15VC 1Mbit 128K x 8 Low Power CMOS Static RAM IC

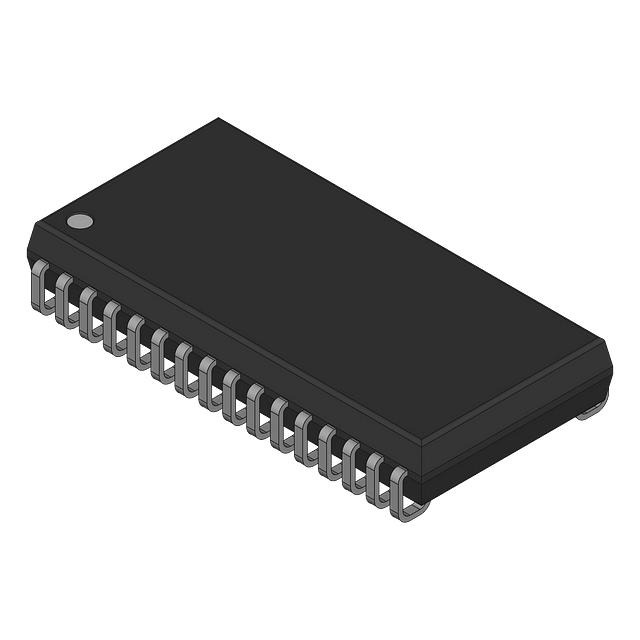

Product Images are shown for illustrative purposes only and may differ from actual product.

CY7C1019CV33-15VC 1Mbit 128K x 8 Low Power CMOS Static RAM IC

  • Stock: Out Of Stock
  • SKU: 5055 | DAG829

Availability: NotInStock priceValidUntil: 2025-10-13

  • Rs. 224.20 (inc GST)
    Rs.190.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

CY7C1019CV33-15VC 128K x 8 Low Power CMOS Static RAM IC

CY7C1019CV33-15VC 128K x 8 Low Power CMOS Static RAM IC

The  CY7C1019CV33  is  a  high-performance  CMOS  static RAM  organized  as  131,072  words  by  8  bits.  Easy  memory expansion is provided by an active LOW Chip Enable (CE), an active  LOW  Output  Enable  (OE),  and  tri-state  drivers.  This device has an automatic power-down feature that significantly reduces power consumption when deselected. Writing to the device is accomplished by taking Chip Enable(CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins  (I/O0  through  I/O7)  is  then  written  into  the  location specified on the address pins (A0 through A16).The CY7C1019CV33 is available in Standard 48-ball FBGA,32-pin TSOP II and 400-mil-wide SOJ packages.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CY7C1019CV33-15VC 128K x 8 Low Power CMOS Static RAM IC

  • Pin and function compatible with CY7C1019BV33
  • High speed—tAA = 10 ns
  • CMOS for optimum speed/power
  • Data retention at 2.0V
  • Center power/ground pinout
  • Automatic power-down when deselected
  • Easy memory expansion with CEand OE options
  • Available in Pb-free and non Pb-free 48-ball VFBGA, 32-pin TSOP II and 400-mil SOJ package

Specifications of CY7C1019CV33-15VC 128K x 8 Low Power CMOS Static RAM IC

  • Memory Type: CMOS Static RAM (SRAM).
  • Memory Size: 1 Megabit (128K x 8 bits).
  • Operating Voltage (Vcc): 3.0V to 3.6V.
  • Access Time (Speed): 15 ns (for the CY7C1019CV33-15VC version).
  • Data Retention Voltage: 2V (minimum).
  • Input and Output Levels: 3.3V TTL compatible.

    Package Includes

    • 1 x CY7C1019CV33-15VC 128K x 8 Low Power CMOS Static RAM IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
