  • CZ-3705 Accurate Coreless Current Sensor IC

Product Images are shown for illustrative purposes only and may differ from actual product.

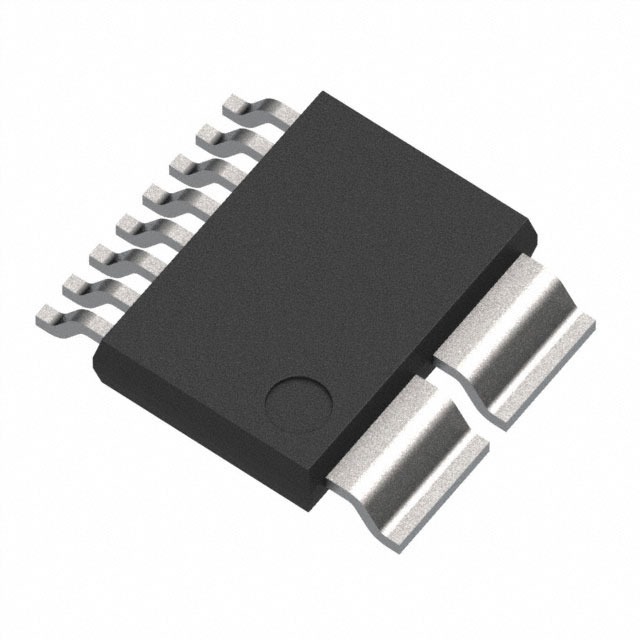

CZ-3705 Accurate Coreless Current Sensor IC

4.50 2 5
Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2025-12-16

  • SKU: 7368 | DAF941

Availability: NotInStock priceValidUntil: 2025-12-16

  • Rs. 1,062.00 (inc GST)
    Rs.900.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

CZ-3705 Accurate Coreless Current Sensor IC

CZ-3705 Accurate Coreless Current Sensor IC

CZ-3705 is an open-type current sensor using Hall sensors, which outputs the analog voltage proportional to the AC/DC current. Group III-V semiconductor thin film is used as the Hall sensor, which enables the high-accuracy and high-speed current sensing. Coreless ultra-small surface mount package realizes the space-saving. Also, the low primary conductor resistance suppresses heat generation to achieve the 60Arms continuous current. Existing coreless current sensors have an accuracy is advantage from degradations caused by a disturbed magnetic field. The CZ-370x series has a built-in stray magnetic field reduction function to suppress this effect. The CZ-370x series is also UL 61800-5-1 safety compliant, which is an excellent fit for industrial AC drives, servo motors, etc. The CZ-370x series has a large variety of linear measurement ranges, from ±5.3A (CZ-3700), to ±180A, (CZ-3706). This enables the designer to use the same board design across different products and helps the user to expand the options to different current ratings.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CZ-3705 Accurate Coreless Current Sensor IC

  • Compliant with safety standard of UL61800-5-1 (Clearance, Creepage distance ≧ 8.0mm)
  • Certified with safety standards of UL-1577 and IEC/UL62368-1.
  • Maximum Primary Current : 60Arms
  • High-accuracy : ±0.4%F.S.(Ta=0~90°C Typ.)
  • Quite small primary conductor resistance : 0.27mΩ Typ.
  • Fast response time : 1μs Typ.
  • Stray magnetic field reduction function
  • Small-sized surface mount package（12.7mm×10.9mm×2.25mm）

Specifications of CZ-3705 Accurate Coreless Current Sensor IC

  • Type: SMD Voltage Regulator IC
  • Input Voltage Range: 2V to 24V
  • Output Voltage Range: Fixed output versions available (e.g., 3.3V, 5V)
  • Output Current: Up to 500 mA (maximum, depending on version)
  • Dropout Voltage: Typically 0.2V at 100 mA load current
  • Quiescent Current: Typically 2 µA (low current consumption)

    Package Includes

    • 1 x CZ-3705 Accurate Coreless Current Sensor IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
