• FAN7392 High and Low-Side Gate-Drive 14PIN IC

Product Images are shown for illustrative purposes only and may differ from actual product.

FAN7392 High and Low-Side Gate-Drive 14PIN IC

  • Stock: Out Of Stock
  • SKU: 7661 | DAF355

Availability: NotInStock priceValidUntil: 2025-10-13

  • Rs. 118.94 (inc GST)
    Rs.100.80 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

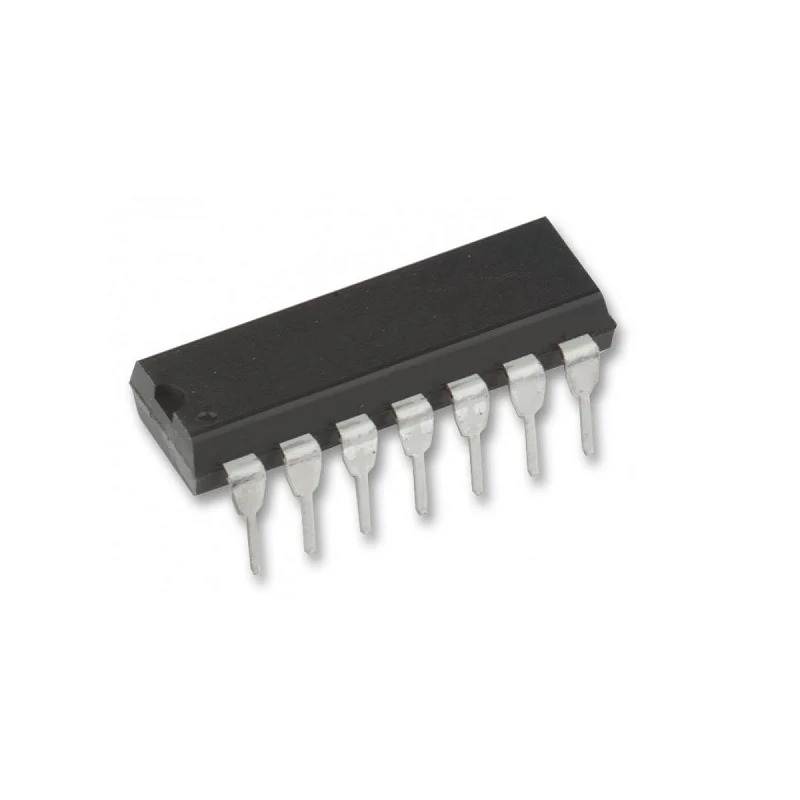

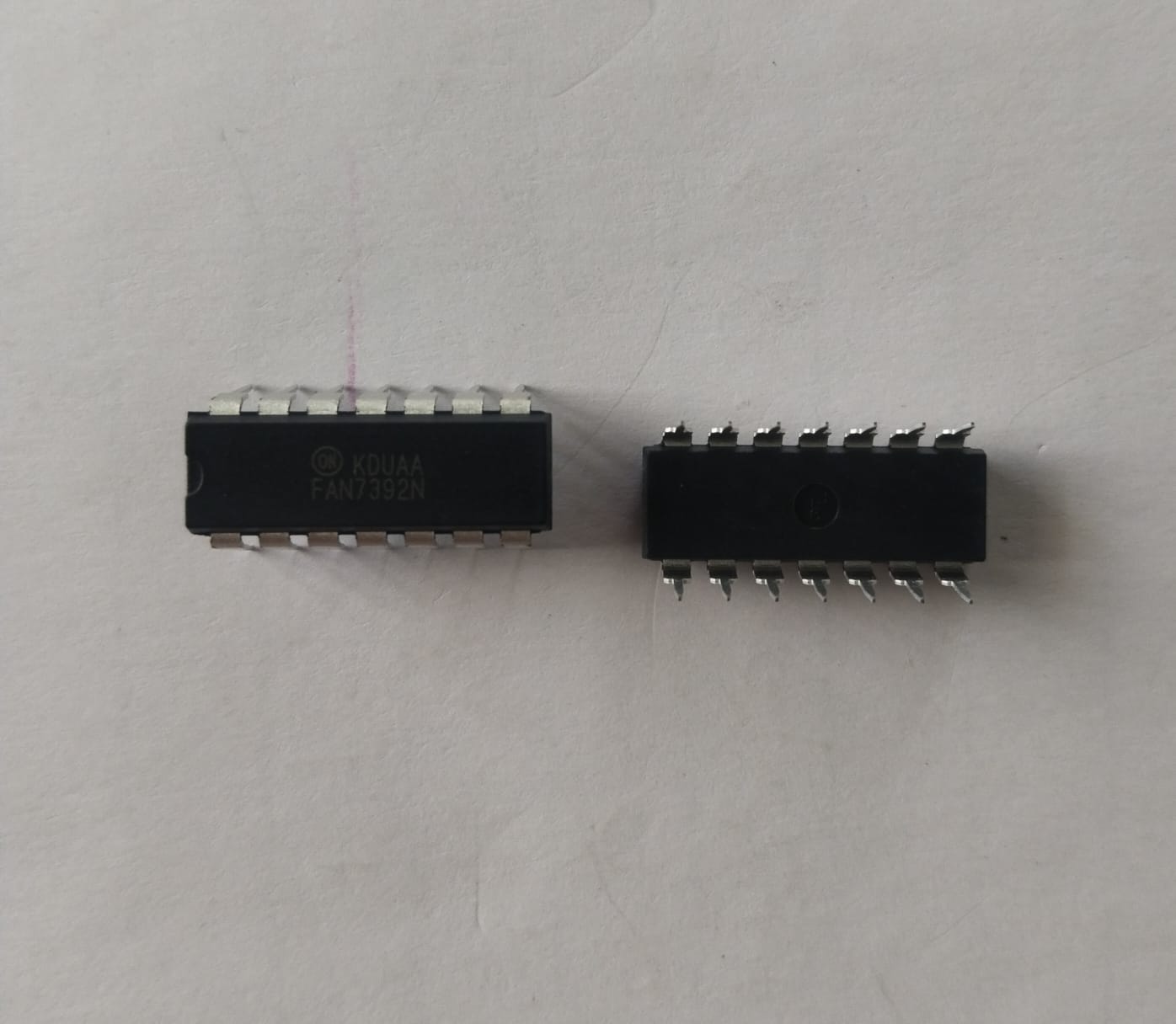

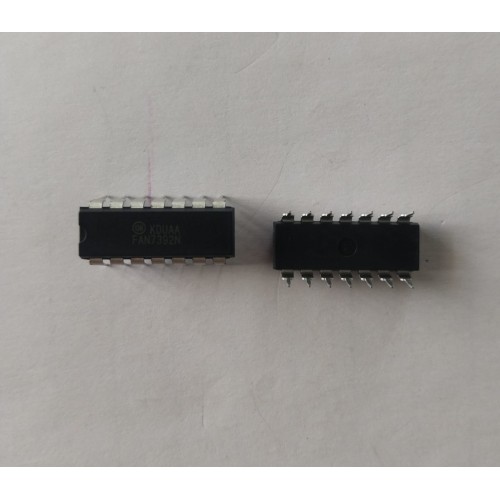

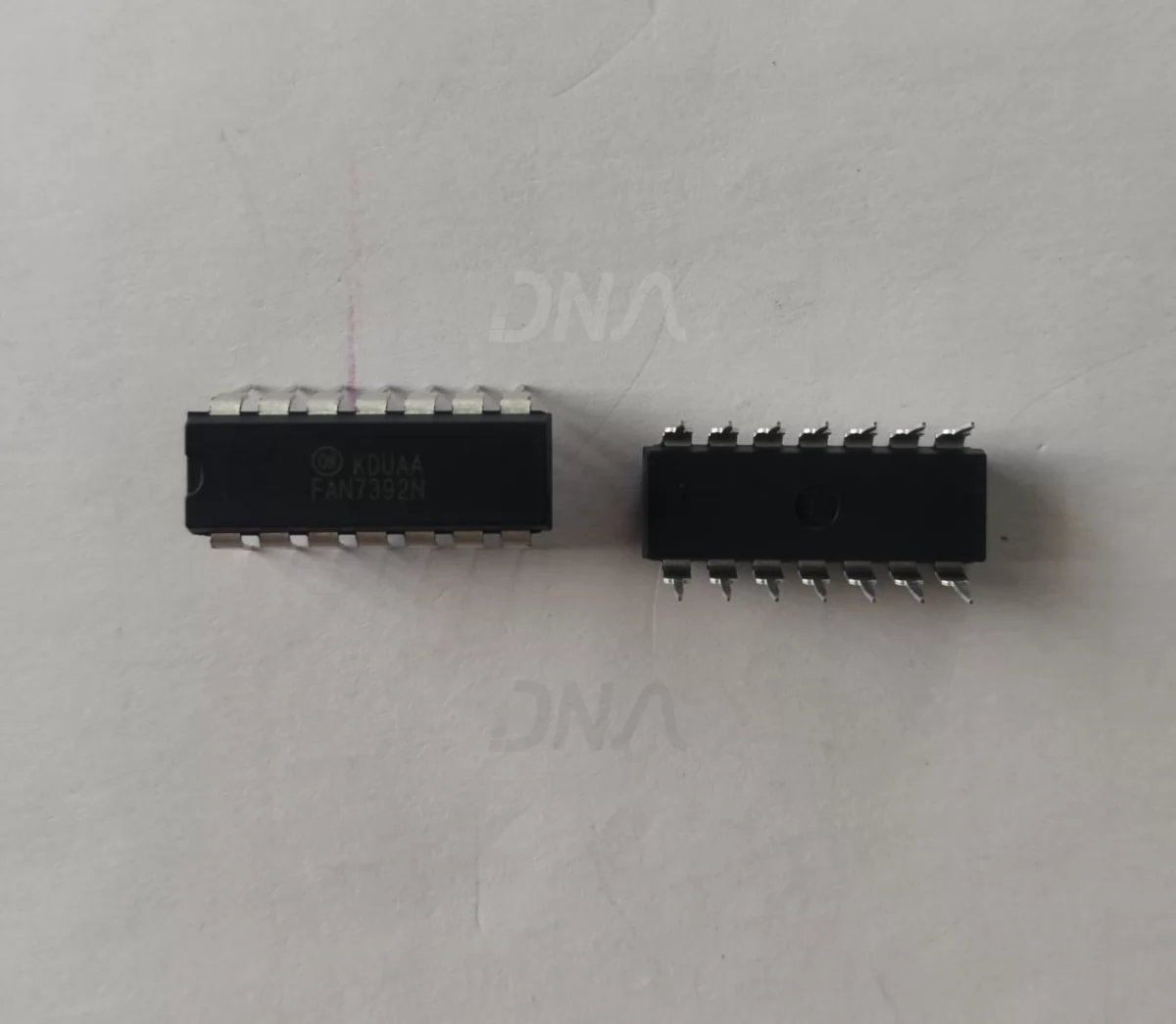

FAN7392 High and Low-Side Gate-Drive 14PIN IC

FAN7392 High and Low-Side Gate-Drive 14PIN IC

The FAN7392 is a monolithic high− and low−side gate drive IC, that can drive high−speed MOSFETs and IGBTs that operate up to +600 V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross−conduction. ON Semiconductor’s high−voltage process and common−mode noise canceling techniques provide stable operation of the high−side driver under high dv/dt noise circumstances. An advanced level−shift circuit offers high−side gate driver operation up to VS = −9.8 V (typical) for VBS = 15 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The UVLO circuit prevents malfunction when VCC and VBS are lower than the specified threshold voltage. The high−current and low−output voltage drop feature makes this device suitable for half− and full−bridge inverters, like switching−mode power supply and high−power DC−DC converter applications.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of FAN7392 High and Low-Side Gate-Drive 14PIN IC

  • Floating Channel for Bootstrap Operation to +600 V
  • 3 A/3 A Sourcing/Sinking Current Driving Capability
  • Common−Mode dv/dt Noise Canceling Circuit
  • 3.3 V Logic Compatible
  • Separate Logic Supply (VDD) Range from 3.3 V to 20 V
  • Under−Voltage Lockout for VCC and VBS
  • Cycle−by−Cycle Edge−Triggered Shutdown Logic
  • Matched Propagation Delay for Both Channels
  • Outputs In−phase with Input Signals
  • Available in 14−DIP and 16−SOP (Wide) Packages

Applications of FAN7392 High and Low-Side Gate-Drive 14PIN IC

  • High−Speed Power MOSFET and IGBT Gate Driver
  • Server Power Supply
  • Uninterrupted Power Supply (UPS)
  • Telecom System Power Supply
  • Distributed Power Supply
  • Motor Drive Inverter

    Package Includes

          1 x FAN7392 High and Low-Side Gate-Drive 14PIN IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
