Product Images are shown for illustrative purposes only and may differ from actual product.

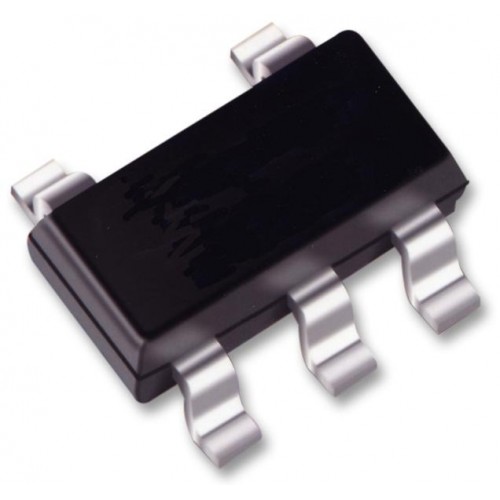

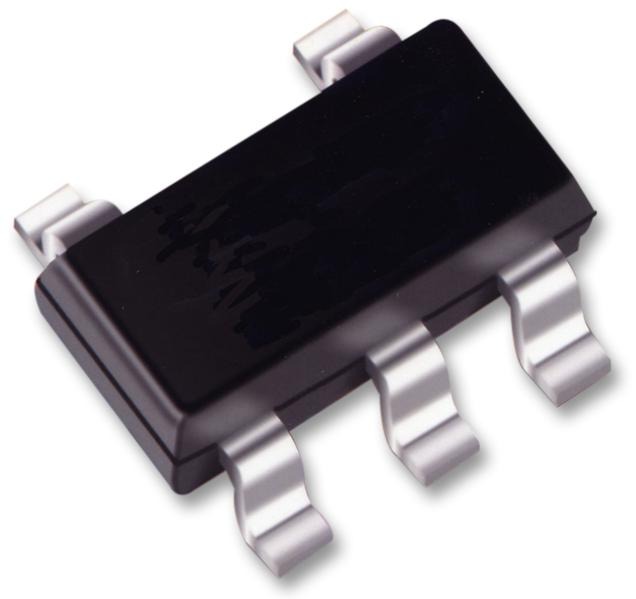

LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23 IC
- Stock: Out Of Stock
- SKU: 6057 | DAG906
-
Rs. 672.60 (inc GST)
Rs.570.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23 IC
LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23 IC
The LTC®6101/LTC6101HV are versatile, high voltage, high side current sense amplifiers. Design flexibility is provided by the excellent device characteristics; 300μV Max offset and only 375μA (typical at 60V) of current consumption. The LTC6101 operates on supplies from 4V to 60V and LTC6101HV operates on supplies from 5V to 100V. The LTC6101 monitors current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing for a small sense signal on a high common mode voltage to be translated into a ground referenced signal. Low DC offset allows the use of a small shunt resistor and large gain-setting resistors. As a result, power loss in the shunt is reduced. The LTC6101 is available in 5-lead SOT-23 and 8-lead MSOP packages.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23 IC
- Operating Temperature Range: –55°C to 125°C
- Package Option for High Voltage Spacing
- Low Profile (1mm) SOT-23 (ThinSOT™) Package
- Low Offset Voltage: 300μV Max
- Fast Response: 1μs Response Time (0V to 2.5V on5V Output Step)
- Gain Configurable with 2 Resistors
- Low Input Bias Current: 170nA Max
- PSRR: 118dB Min
- Output Current: 1mA Max
- Low Supply Current: 250μA, VS = 12V
- Specified Temperature Range: –40°C to 125°C
- Supply Range:
- 5V to 100V, 105V Absolute Maximum (LTC6101HV)
- 4V to 60V, 70V Absolute Maximum (LTC6101)
Application of LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23 IC
- Power Management
- Current Shunt Measurement
- Remote Sensing
- Battery Monitoring
Package Includes
- 1 x LTC6101 High Voltage, High-Side Current Sense Amplifier in SOT-23 IC
