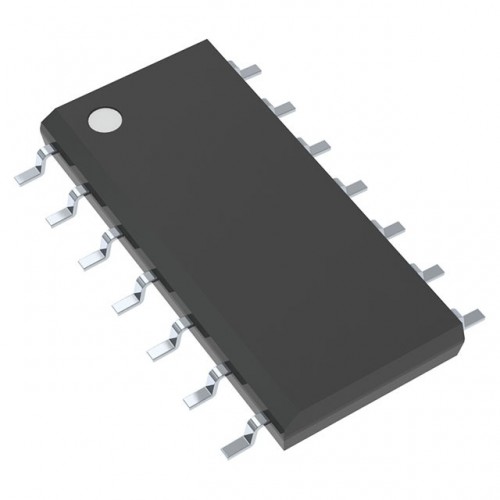

Product Images are shown for illustrative purposes only and may differ from actual product.

MC14541 Programmable Timer (SOIC14) IC


Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-07

  • SKU: 7409 | DAG727

Availability: NotInStock priceValidUntil: 2026-03-07

  • Rs. 75.52 (inc GST)
    Rs.64.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MC14541 Programmable Timer (SOIC14) IC

MC14541 Programmable Timer (SOIC14) IC

The MC14541B programmable timer consists of a 16−stage binary counter, an integrated oscillator for use with an external capacitor and two resistors, an automatic power−on reset circuit, and output control logic. Timing is initialized by turning on power, whereupon the power−on reset is enabled and initializes the counter, within the specified VDD range. With the power already on, an external reset pulse can be applied. Upon release of the initial reset command, the oscillator will oscillate with a frequency determined by the external RC network.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MC14541 Programmable Timer (SOIC14) IC

  • Increments on Positive Edge Clock Transitions
  • Built−in Low Power RC Oscillator (±2% accuracy over temperature range and ±20% supply and ±3% over processing at < 10 kHz)
  • Oscillator May Be Bypassed if External Clock Is Available (Apply external clock to Pin 3)
  • External Master Reset Totally Independent of Automatic Reset Operation
  • Operates as 2n Frequency Divider or Single Transition Timer
  • Q/Q Select Provides Output Logic Level Flexibility

Specifications of MC14541 Programmable Timer (SOIC14) IC

  • Operating Voltage Range: 3.0V to 18V
  • Input Clock Frequency: DC to 100 kHz
  • Power Consumption: Low power consumption
  • Time Delay Range: From microseconds to hours, determined by external components
  • Output Current: 10 mA typical

Package Includes

    • 1 x MC14541 Programmable Timer (SOIC14) IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
