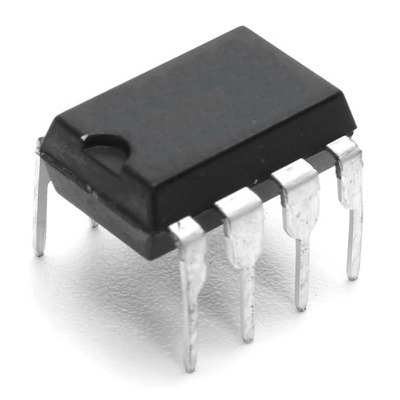

Product Images are shown for illustrative purposes only and may differ from actual product.

SD6834 PWM controller with built-in high-voltage DIP IC


Write a review | 4 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-02-23

  • SKU: 7393 | DAH160

Availability: NotInStock priceValidUntil: 2026-02-23

  • Rs. 49.56 (inc GST)
    Rs.42.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SD6834 PWM controller with built-in high-voltage DIP IC

SD6834 PWM controller with built-in high-voltage DIP IC

The SD6834 is a built-in high voltage MOSFET external sampling resistor for switching power supplies Of the current mode PWM + PFM controller series products. The circuit standby power consumption is low, the starting current is low. In standby mode, the circuit enters Hiccup mode, thereby effectively reducing the standby power consumption of the circuit. The switching center frequency of the circuit is 25 ~ 67KHz, depending on the load. Jittery Off the frequency, can get lower EMI.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SD6834 PWM controller with built-in high-voltage DIP IC

  • Low start current (3μA)
  • The switching frequency with the load can increase efficiency
  • Jitter switching frequency can reduce EMI
  • Overvoltage, the original coil over-current, overload, over-temperature protection
  • External peak current sampling resistor
  • Initialize the peak current maximum compensation, to achieve soft start function
  • Internal integrated high voltage MOSFET

Specifications of SD6834 PWM controller with built-in high-voltage DIP IC

  • Input Voltage Range: Typically operates from 85V to 265V AC, making it suitable for universal input applications.
  • Switching Frequency: Approximately 65 kHz, with frequency jittering to reduce EMI.
  • Standby Power Consumption: Typically <100mW, ensuring compliance with low standby power requirements.
  • Output Power: Capable of supporting up to 24W in typical SMPS applications, depending on the design.
  • Output Voltage: Configurable depending on application, usually in the range of 3.3V to 12V.
  • Operating Temperature Range: −40°C to +85°C, making it suitable for both industrial and consumer electronics applications.

    Package Includes

    • 1 x SD6834 PWM controller with built-in high-voltage DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
