TOP264VG Integrated Off-Line Switcher

TOP264VG Integrated Off-Line Switcher

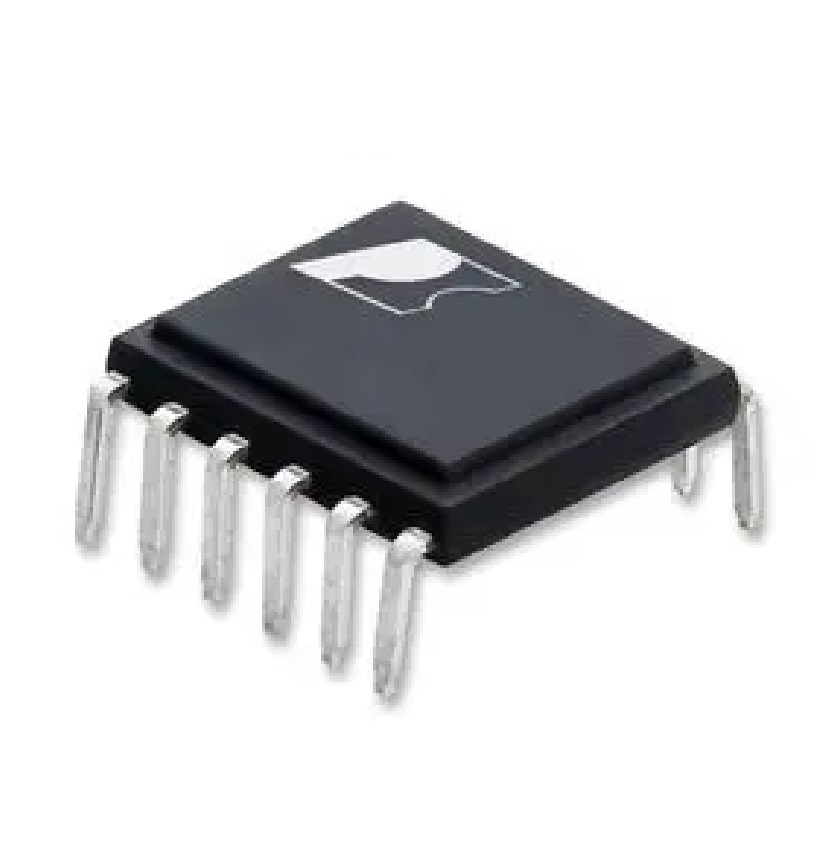

The TOP264VG is an integrated off-line switcher IC from the TOP Switch-HX family, designed by Power Integrations. It provides a high level of integration and performance, combining a high-voltage power MOSFET, PWM control, fault protection, and other functions into a single package. The device is intended for use in compact, highly efficient, and reliable off-line power supplies. TOP Switch-JX cost effectively incorporates a 725 V power MOSFET, high-voltage switched current source, multi-mode PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• High Efficiency: The IC is designed to optimize efficiency across a wide range of loads, helping to reduce heat dissipation and improve overall performance.


• Integrated Features: Combines high-voltage power MOSFET, PWM controller, and fault protection circuits in one package.


• Advanced Protection: Includes features like over-temperature protection, over-current protection, and over-voltage protection to ensure reliability and safety.


• Programmable Switching Frequency: Allows the user to set the switching frequency, providing flexibility in design and optimization.


• Multi-mode Operation: Supports different modes of operation for optimal efficiency, including burst mode for light loads.


• Line under voltage (UV) detection prevents turn-off glitches


• Line overvoltage (OV) shutdown extends line surge with stand


Specifications of TOP264VG Integrated Off-Line Switcher

• Input Voltage Range: 85-265 VAC


• Maximum Power Output: Up to 264W (dependent on external components and cooling)


• MOSFET Breakdown Voltage: 725V (typical)


• Operating Frequency: 66 kHz, 132 kHz (programmable)


• Standby Power: Less than 150 mW at 265 VAC input


• Efficiency: Typically above 85% across a wide load range


• Temperature Range: -40°C to +150°C junction temperature


Package Includes

• 1 x TOP264VG Integrated Off-Line Switcher
