Product Images are shown for illustrative purposes only and may differ from actual product.

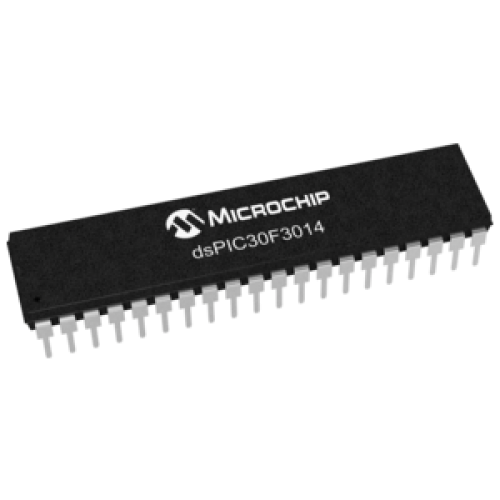

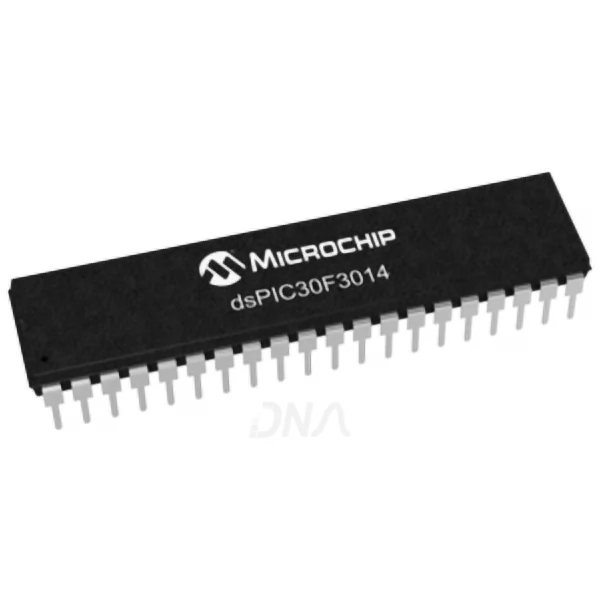

dsPIC30f3014


Write a review | 1 reviews

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-05-08

  • Brand: Microchip
  • SKU: 462 | DAA323

Availability: InStock priceValidUntil: 2026-05-08

  • Rs. 601.80 (inc GST)
    Rs.510.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

dsPIC30f3014

High-Performance,16-bit Digital Signal Controllers

dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F and PIC24 devices in similar packages.

Features of dsPIC30f3014

High-Performance Modified RISC CPU:

  • Modified Harvard Architecture
  • C Compiler Optimized Instruction Set Architecture
  • Flexible Addressing modes
  • 83 Base Instructions
  • 24-Bit Wide Instructions, 16-Bit Wide Data Path
  • Up to 48 Kbytes On-Chip Flash Program Space
  • 2 Kbytes of On-Chip Data RAM
  • 1 Kbyte of Nonvolatile Data EEPROM
  • 16 x 16-Bit Working Register Array
  • Up to 30 MIPS Operation:
           - DC to 40 MHz External Clock Input
           - 4 MHz-10 MHz Oscillator Input with
  • PLL Active (4x, 8x, 16x)
  • Up to 33 Interrupt Sources:
          - 8 user-selectable priority levels
          - 3 external interrupt sources
          - 4 processor traps

DSP Features

  • Dual Data Fetch
  • Modulo and Bit-Reversed modes
  • Two 40-Bit Wide Accumulators with Optional saturation Logic
  • 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
  • All DSP Instructions are Single Cycle
          - Multiply-Accumulate (MAC) Operation
  • Single-Cycle ±16 Shift

Peripheral Features of dsPIC30f3014

  • High-Current Sink/Source I/O Pins : 25 mA/25 mA
  • Up to Five 16-Bit Timers/Counters; Optionally Pair Up
  • 16-Bit Timers into 32-Bit Timer modules
  • Up to Four 16-Bit Capture Input Functions
  • Up to Four 16-Bit Compare/PWM Output Functions
  • Data Converter Interface (DCI) Supports Common
  • Audio Codec Protocols, Including I2S and AC’97
  • 3-Wire SPI module (supports 4 Frame modes)
  • I2C™ module Supports Multi-Master/Slave mode and 7-Bit/10-Bit Addressing
  • Up to Two Addressable UART modules with FIFO Buffers
  • CAN bus module Compliant with CAN 2.0B Standard

Analog Features of dsPIC30f3014

  • 12-Bit Analog-to-Digital Converter (ADC) with:
          - 200 ksps conversion rate
          - Up to 13 input channels
          - Conversion available during Sleep and Idle
  • Programmable Low-Voltage Detection (PLVD)
  • Programmable Brown-out Reset

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
