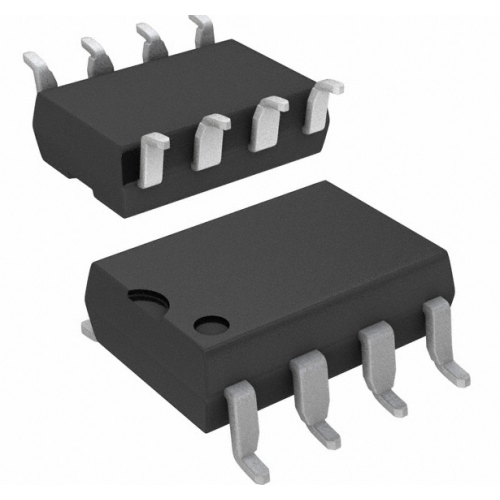

• A 4506 Logic Output Optoisolator SMD IC

Product Images are shown for illustrative purposes only and may differ from actual product.

A 4506 Logic Output Optoisolator SMD IC

  • Stock: Out Of Stock
  • SKU: 9764 | DAI501

Availability: NotInStock priceValidUntil: 2025-09-27

  • Rs. 127.44 (inc GST)
    Rs.108.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

A 4506 Logic Output Optoisolator SMD IC

A 4506 Logic Output Optoisolator SMD IC

A4506 is a high-speed logic output optoisolator IC in SMD package. It integrates a high-efficiency infrared LED and a photodetector IC for reliable signal isolation. Provides fast switching performance and is suitable for TTL or CMOS logic interfaces. Ensures safe signal transmission between high-voltage and low-voltage circuits. Widely used in microcontroller interfacing, signal isolation, and industrial control systems.

DNA solutions, Nashik has various types of Optoisolator IC's. Check out our complete collection of Optoisolator IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of A 4506 Logic Output Optoisolator SMD IC

  • Logic-level output for direct connection to digital circuits
  • High-speed switching capability
  • Low input current requirement
  • Excellent insulation voltage
  • Compact SMD package

Specifications of A 4506 Logic Output Optoisolator SMD IC

  • Input type: Infrared LED
  • Output type: Photodetector IC with open-collector or logic output
  • Isolation voltage: ~3750 Vrms
  • CTR: Typically 15–50%
  • Operating temperature: –40 °C to +100 °C

Applications of A 4506 Logic Output Optoisolator SMD IC

  • Microcontroller and logic signal isolation
  • PLC and industrial automation systems
  • Switching power supplies
  • Data communication interfaces

    Package Includes

          1 x A 4506 Logic Output Optoisolator SMD IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
