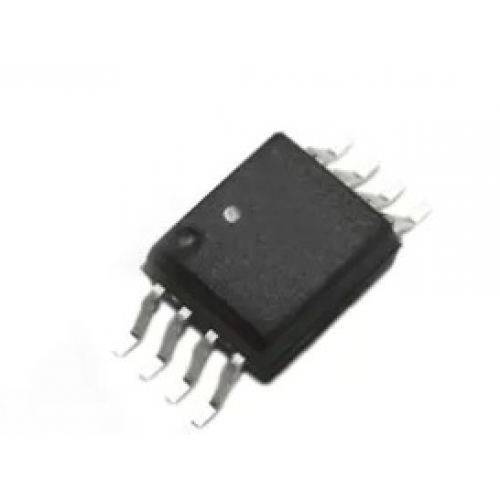

ACPL H301 Optocoupler SMD IC

ACPL H301 Optocoupler SMD IC

The ACPL-H301 is a high-speed optocoupler IC in an 8-pin SMD (SOP-8) package. It provides 5000 Vrms isolation voltage for safe signal transmission. With a propagation delay of 4 ns, it's ideal for high-speed digital interfaces. It features low power consumption and high common mode transient immunity. Operating temperature ranges from -40°C to +100°C, suiting industrial use. Commonly used in automation, power supplies, and medical equipment.

DNA solutions, Nashik has various types of Optocoupler IC's. Check out our complete collection of Optocoupler IC's.

• High-Speed Performance: Typical propagation delay times of 4.0 ns (tPHL/tPLH), suitable for high-speed signal transmission.

• High Isolation Voltage: Provides isolation voltage up to 5000 Vrms, ensuring safety in high-voltage applications.​

• Low Power Consumption: Maximum supply current (ICC) of 4.0 mA, making it energy-efficient.

• Common Mode Transient Immunity: Typical immunity of 2000 V/μs, enhancing reliability in noisy environments.

• Operating Temperature Range: -40°C to +100°C, suitable for various industrial environments.

• Package: Available in an 8-pin Small Outline Package (SOP-8), facilitating surface-mount assembly.

Specifications of ACPL H301 Optocoupler SMD IC

• Isolation Voltage: 5000 Vrms

• Propagation Delay (tPHL/tPLH): 4 ns

• Supply Voltage (Vcc): 4.5V to 5.5V

• Input Forward Current (IF): 5 mA (typical), 10 mA (max)

• Supply Current (ICC): 4 mA (max)

• Data Rate: 10 Mbps

• Output Type: Open Collector

Applications of ACPL H301 Optocoupler SMD IC

• Industrial automation systems​

• Medical equipment​

• Home appliances​

• Security systems

• Power supply isolation

Package Includes

      1 x ACPL H301 SMD IC
