  • MAX485 IC

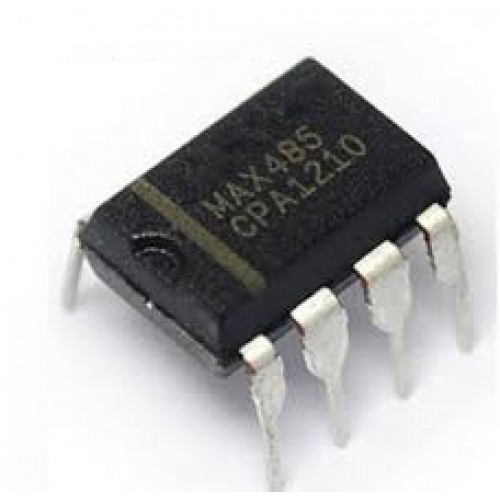

Product Images are shown for illustrative purposes only and may differ from actual product.

MAX485 IC

  • Price :

    Rs.94.40 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

MAX485 TTL to RS485 IC

The MAX485 is low-power transceiver for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The driver slew rates of the MAX485 is not limited, allowing them to transmit up to 2.5Mbps. All parts operate from a single 5V supply.The driver is short-circuit current limited and  protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The MAX485 is designed for half-duplex applications.


Features of MAX485 IC

  • In µMAX Package: Smallest 8-Pin SO

  • Low Quiescent Current: 300µA

  • -7V to +12V Common-Mode Input Voltage Range

  • Three-State Outputs

  • Half-Duplex Versions Available

  • Operate from a Single 5V Supply


Applications of MAX485 TTL to 485 IC

  • Low-Power RS-485 Transceivers

  • Low-Power RS-422 Transceivers

  • Level Translators

  • Transceivers for EMI-Sensitive Applications

  • Industrial-Control Local Area Networks

  • Current-Limiting and Thermal Shutdown for Driver Overload Protection
