Product Images are shown for illustrative purposes only and may differ from actual product.

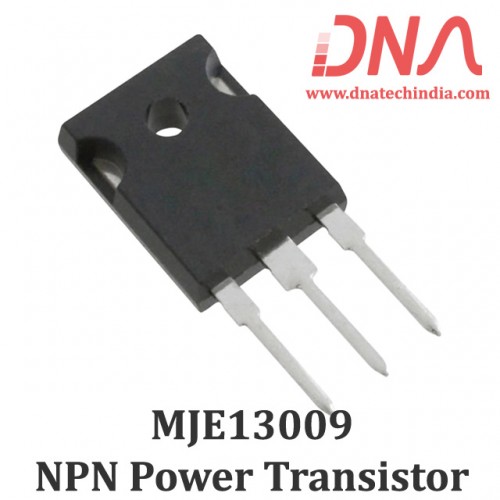

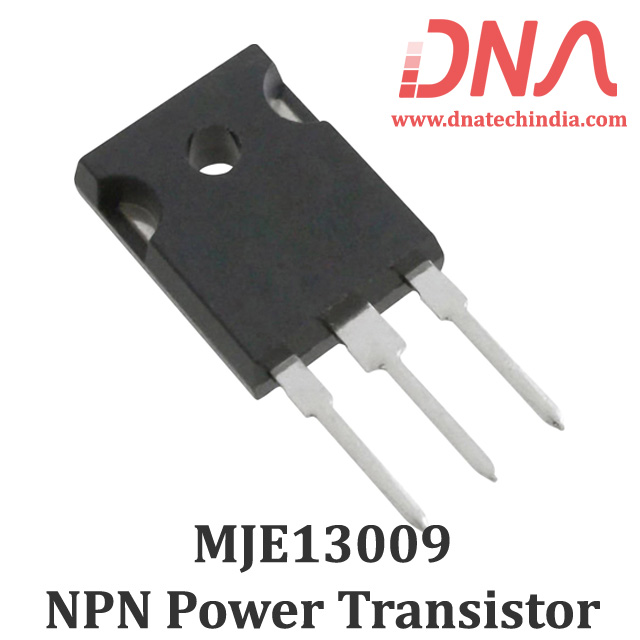

MJE13009L /E13009L NPN Power Transistor
- Stock: 1
- SKU: 3035 | DAE770
-
Rs. 60.53 (inc GST)
Rs.51.30 + GSTQty :
-
Quantity Pricing (inc GST)
5 + 58.65 20 + 53.93 50 + 49.56
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MJE13009L/E13009L NPN Power Transistor
E13009L NPN Power Transistor 12A 400V 100W for high-speed power switching applications.
The E13009L NPN Power Transistor is engineered for high-voltage, high-speed power switching in inductive circuits. With a voltage rating of 400V and a current capacity of 12A, it is ideal for applications like switching regulators, inverters, and motor controls. This transistor excels in environments where fall time is critical, ensuring efficient operation. The E13009L also features 700V blocking capability, making it a robust choice for various switching applications.
Designed for reliability, the E13009L NPN Power Transistor operates well under inductive loads, providing reverse bias SOA. This transistor performs efficiently at temperatures up to 100°C, ensuring durability in demanding conditions. Whether you are working on solenoid drivers or deflection circuits, the E13009L is a dependable component for your electronic projects.
Explore our complete collection of NPN and PNP power transistors at DNA. We cater to all your electronic needs, ensuring you find the right components for your designs. With options available for both retail and bulk purchases, trust DNA for your electronic components in India.
At DNA, we provide high-quality Diodes & Transistors from trusted manufacturers like E13009L. Explore our selection of electronic components for your next project. Check other Diodes & Transistors that we have in stock.
If you're an Indian electronics buyer and need specific parts, reach out to us. We can import components if they're not available. We also support retail and bulk orders. Explore related items like Inductors, Crystals, Sensors, and Development Boards. Contact Us.
Features of E13009L NPN Power Transistor
- High voltage rating of 400V
- Current capacity of 12A
- Fast fall time of 120 ns
- 700V blocking capability
- Suitable for inductive loads
Specification of E13009L NPN Power Transistor
- VCEO(sus) 400V
- Reverse Bias SOA with Inductive Loads @ TC = 100°C
- Inductive Switching Matrix 3 to 12 Amp
- 25 and 100°C tc @ 8 A, 100°C is 120 ns (Typ)
Applications of E13009L NPN Power Transistor
- Switching Regulators
- Inverters
- Motor Controls
- Solenoid/Relay Drivers
- Deflection Circuits
Related Links for MJE13009L/E13009L NPN Power Transistor
Package Includes
- 1 X E13009L NPN Power Transistor
