Product Images are shown for illustrative purposes only and may differ from actual product.

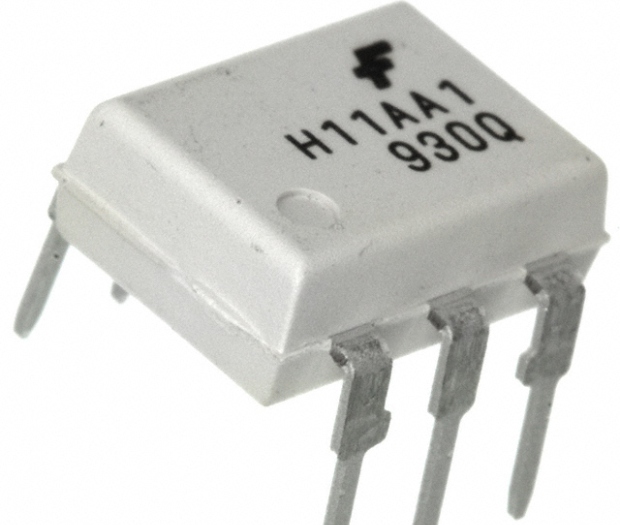

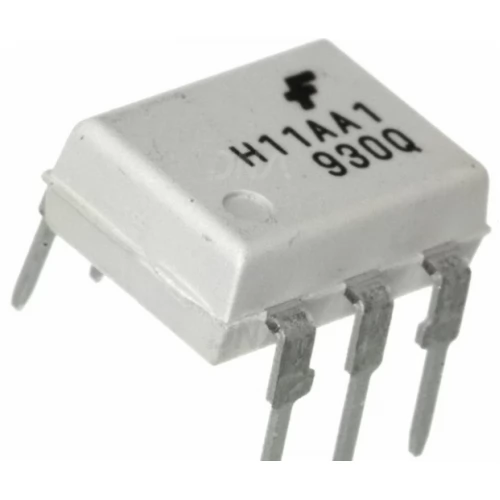

H11AA1 Optocoupler DIP IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • SKU: 966 | DAA418

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 50.98 (inc GST)
    Rs.43.20 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

H11AA1 Optocoupler Bi-Directional Isolator

H11AA1 DIP IC for AC signal detection; 20% minimum CTR; 5300 VRMS isolation voltage.

The H11AA1 Optocoupler Bi-Directional Isolator is designed for reliable AC signal detection. This component features two inverse parallel infrared LEDs coupled with a silicon NPN photo-transistor. With a 20% minimum current transfer ratio (CTR), it ensures effective signal isolation. The H11AA1 Optocoupler is ideal for applications such as telephone line detection and PLC instrumentation. Its robust isolation voltage of 5300 VRMS guarantees safety in sensitive environments.
This H11AA1 Optocoupler comes in a standard 6 pin DIP package, ensuring easy integration with existing circuits. The built-in reverse polarity protection enhances reliability, making it suitable for various industrial applications. Its compliance with RoHS and WEEE directives further signifies its eco-friendly design, appealing to environmentally conscious users in India.
For those seeking a dependable optically coupled isolator, the H11AA1 Optocoupler Bi-Directional Isolator delivers performance and safety. Explore its potential in AC line motor control and instrumentation applications, and experience the benefits of high-quality signal isolation.
Explore the range of reliable products in the OptoCouplers & OptoIsolators category at DNA. The H11AA1 from our trusted manufacturer is a key solution for your isolation needs. Check other "OptoCouplers & OptoIsolators" that we have in stock.
If you are searching for specific electronic components, reach out to us at DNA. We can help you find parts like Sensors, Resistors, DC to DC Converter ICs, Connectors, and more. We also support both retail and bulk orders. Contact Us.

Features of H11AA1 Optocoupler Bi-Directional Isolator

  • Bi-directional input
  • Minimum CTR of 20%
  • Built-in reverse polarity protection
  • 5300 VRMS isolation voltage
  • Standard 6 pin DIP package

Specification of H11AA1 Optocoupler Bi-Directional Isolator

  • Isolation test voltage: 5300 VRMS
  • Compliance with RoHS Directive
  • CTR symmetry of 1:3
  • I/O compatibility with integrated circuits

Applications of H11AA1 Optocoupler Bi-Directional Isolator

  • Telephone line detection
  • AC line motor control
  • PLC instrumentation
  • Signal monitoring

Related Links for H11AA1 Optocoupler Bi-Directional Isolator

Package Includes

  • 1 X H11AA1 Optocoupler Bi-Directional Isolator
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited

Reviews (7)

Write a review

Note: HTML is not translated!
    Bad           Good

Frequently Asked Questions

Do you provide a GST bills?
Yes we provide GST Bill by the name of DNA Solutions. You will receive a GST compliant invoice for your records. You can take GST benefit.
What is your return / replacement policy?
Returns/replacements depend on the item type and condition. If there’s an issue, contact us with photos/videos and we’ll guide you as per policy.
Do you ship all over India?
Yes — we dispatch orders across India.
What payment methods do you accept?
We accept UPI, cards, netbanking, and other checkout options shown on the payment page.
What details should I share for sourcing a non-listed component?
Send these details for fastest sourcing: - Exact part number - Manufacturer (if known) - Package type - Product image (if possible) - Required quantity - Delivery address + PIN code - Timeline/urgency
Can I order just one piece (no minimum order quantity)?
Yes — we support single-piece orders for many products. If a product has MOQ, it will be mentioned on the product page.
