22uH 2.25 DIP INDUCTOR (0307)

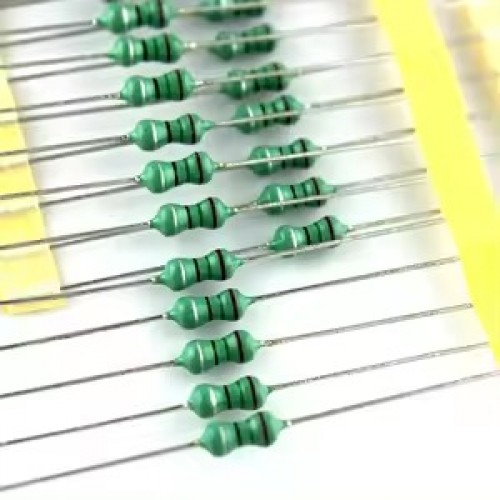

22uH 2.25A DIP Inductor for Power Applications

22µH 2.25A DIP Inductor; High current capacity; Compact size for PCB layouts.

The 22uH 2.25A DIP Inductor is ideal for various power applications. It features a compact design, making it suitable for high-density printed circuit boards. This inductor can handle a maximum current of 2.25A, ensuring reliable performance in demanding environments. It maintains stable inductance across a wide frequency range, making it a versatile choice for electronic circuits. The low DCR minimizes power loss, enhancing overall efficiency.

This inductor is built with axial leads for easy through-hole mounting, ensuring a secure connection to PCBs. The robust construction guarantees high reliability and a long operational life. The compact size of the 22uH 2.25A DIP Inductor makes it a preferred choice for designers looking to optimize space in their projects. Stable inductance and high current capacity make it suitable for various applications, including power supplies and RF circuits.

Explore the benefits of the 22uH 2.25A DIP Inductor for your electronic projects. With a temperature range of -40°C to +125°C, it operates well in different environments. This inductor will enhance the performance of your circuit designs, ensuring efficiency and reliability.

Discover the reliability of Inductors. These components are essential for efficient power management. Check other Inductors that we have in stock.

we cater to all your electronic component needs. If you are looking for specific parts, reach out to us. We can import any unavailable items and support you in retail or bulk orders. Explore related items like Programmer, Humidity & Temperature Sensor, Digital IC, Connectors, Resistor, and Development Module. Contact Us.

Features of 22uH 2.25A DIP Inductor

• High Current Capacity
• Compact Size
• Low DCR
• Stable Inductance
• High Reliability
• Axial Leads

Specification of 22uH 2.25A DIP Inductor

• Inductance: 22µH
• Current Rating: 2.25A
• DC Resistance: Low
• Tolerance: ±10% or ±20%
• Operating Temperature: -40°C to +125°C
• Frequency Range: Up to several MHz

Applications of 22uH 2.25A DIP Inductor

• Power Supplies
• RF Circuits
• Signal Processing
• Voltage Regulators
• Audio Equipment

Package Includes

• 1 X 22uH 2.25A DIP Inductor
