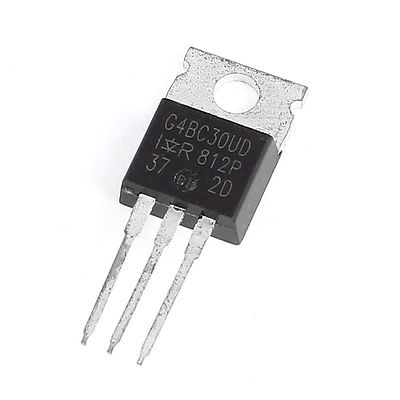

IRG4BC30UD Ultra-Fast CoPack IGBT

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-08-17
SKU: 638 | DAA178

Rs. 295.00 (inc GST)
Rs.250.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

IRG4BC30UD Ultra-Fast CoPack IGBT

IRG4BC30UD is an IGBT with Ultrafast Soft Recovery Diode.

Features of IRG4BC30UD Ultra-Fast CoPack IGBT

Ultra-Fast : Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode
Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3
IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations
Industry standard TO-220AB package
Generation -4 IGBT's offer highest efficiencies available
IGBTs optimized for specific application conditions
HEXFRED diodes optimized for performance with IGBTs . Minimized recovery characteristics require less/no snubbing
Designed to be a "drop-in" replacement for equivalent industry-standard Generation 3 IR IGBTs
Collector-to-Emitter Voltage (V_CES) 600 V
Continuous Collector Current (I_C @ T_C = 25°C ) 23Amp
Continuous Collector Current (I_C@ T_C = 100°C) 12Amp
Pulsed Collector Current ( I_CM) 92 Amp
Clamped Inductive Load Current (I_LM)92Amp
Diode Continuous Forward Current (I_F @ T_C = 100°C) 12Amp
Diode Maximum Forward Current (I_FM) 92Amp
Gate-to-Emitter Voltage (V_GE) ± 20 V

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
