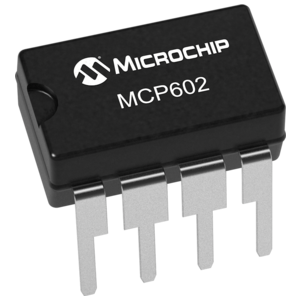

MCP602 Dual Op-Amp

  • Stock: 26

    Availability: InStock priceValidUntil: 2026-12-14

  • SKU: 815 | DAA052

Availability: InStock priceValidUntil: 2026-12-14

  • Rs. 49.56 (inc GST)
    Rs.42.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Microchip MCP602 Dual Operational Amplifier

MCP602 Dual Op-Amp with 2.8 MHz Gain Bandwidth, low current of 230 µA, and offset voltage under 2 mV.

The Microchip MCP602 Dual Operational Amplifier is designed for precision applications. This op-amp features a gain bandwidth product of 2.8 MHz, making it suitable for high-speed operations. With a low quiescent current of 230 µA and an offset voltage less than 2 mV, it ensures efficient performance in battery-operated devices. The MCP602 operates from a single supply voltage as low as 2.7V, ideal for various industrial and portable applications.
The MCP602 is versatile, available in 8-lead PDIP, SOIC, and TSSOP packages. Its rail-to-rail output swing and low input bias current of just 1 pA enhance its performance in low-end audio and data acquisition equipment. The extended temperature range from -40°C to +125°C ensures reliability in demanding environments, making it a top choice for engineers.
Applications for the MCP602 include industrial process control, portable equipment, and test equipment. This op-amp's unique specifications make it a valuable component for anyone looking to enhance their electronic designs with precision and efficiency.
Explore the reliable range of OPAMPs from Microchip at DNA. Our MCP602 Dual Operational Amplifier is designed for high-performance applications. Check other OPAMP that we have in stock.
At DNA, we cater to all your electronic component needs. If you're searching for specific items like DC to DC Converter Module or Microcontroller, let us know. We can import parts not in stock and support retail and bulk orders. Contact Us.

Features of Microchip MCP602 Dual Operational Amplifier

  • Low Input Bias Current: 1 pA
  • Gain-Bandwidth Product: 2.8 MHz
  • Low Quiescent Current: 230 µA/amplifier
  • Low Input Offset Voltage: 2 mV
  • Unity Gain Stable
  • Rail to Rail Output
  • Extended Temperature Range: -40°C to +125°C

Specification of Microchip MCP602 Dual Operational Amplifier

  • Iq Typical (µA): 230
  • Iq Max (µA): 325
  • Operating Voltage Range (V): 2.7 to 6.0
  • PSRR Min (dB): 80
  • CMRR Min (dB): 75
  • Input Voltage Noise Density (nV/rt(Hz)): 29

Applications of Microchip MCP602 Dual Operational Amplifier

  • Industrial Process Control
  • Low-Power Battery-Operated Devices
  • Portable Equipment
  • Data Acquisition Equipment
  • Test Equipment

Related Links for Microchip MCP602 Dual Operational Amplifier

Package Includes

  • 1 X Microchip MCP602 Dual Operational Amplifier
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
