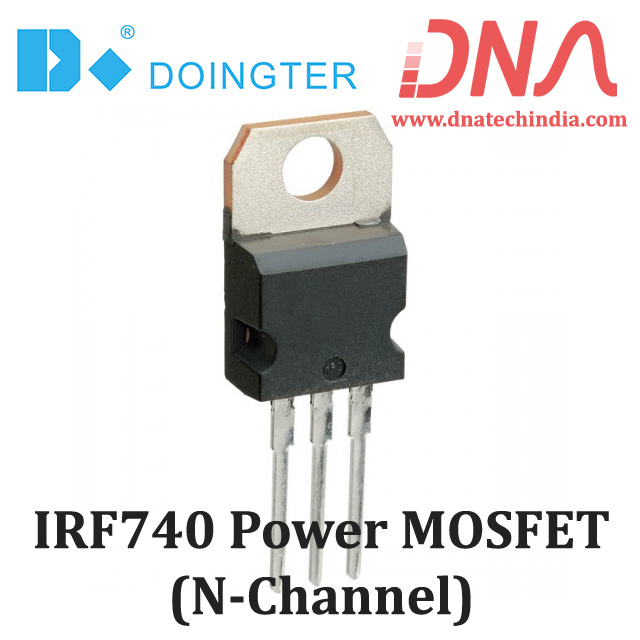

IRF740 N-Channel MOSFET (Doingter)
- Stock: 20
- Brand: Doingter
- SKU: 2854 | DAE485
-
Rs. 32.10 (inc GST)
Rs.27.20 + GSTQty :
-
Quantity Pricing (inc GST)
10 + 29.50 25 + 27.14 50 + 25.02
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
IRF740 N Channel Power MOSFET
IRF740 N-Channel Power MOSFET - 400 Volts, 10 Ampere in TO-220 Package; Doingter Make
IRF740 Power MOSFET from Doingter is a third generation Power MOSFETs that provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220AB package of IRF740 N-Channel Power MOSFET is universally preferred for commercial-industrial applications at power dissipation levels to approximately 50 Watt. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry
DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of IRF740 Power MOSFET
- Part Number: IRF740
- MAKE: Doingter
- Dynamic dv/dt Rating
- Advanced Process Technology
- Ultra Low ON-Resistance
- 175°C Operating Temperature
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 10 Ampere
- ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 6.3 Ampere
- IDM Pulsed Drain Current 40 Ampere
- PD @TC = 25°C Power Dissipation 125 Watt
- Linear Derating Factor 1 W/°C
- VGS Gate-to-Source Voltage ± 20 V
Package Includes
1 x IRF740 N-Channel Power MOSFET
