  • IRG4BC30UD Ultra-Fast CoPack IGBT

Product Images are shown for illustrative purposes only and may differ from actual product.

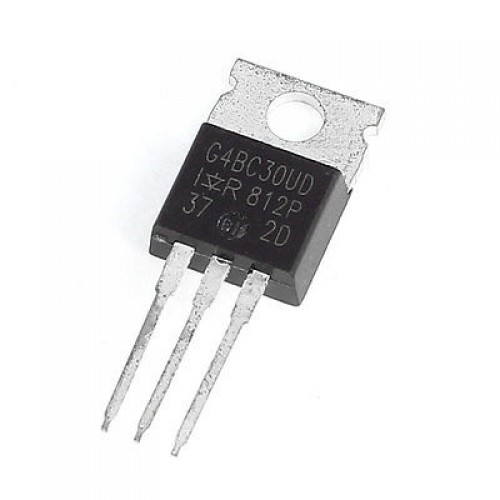

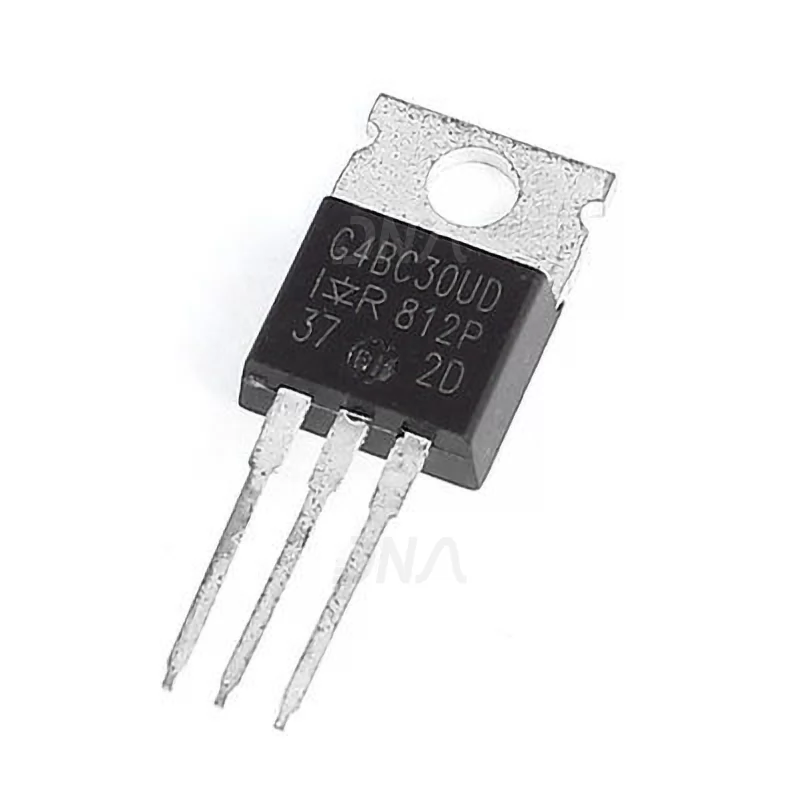

IRG4BC30UD Ultra-Fast CoPack IGBT

  • Stock: Out Of Stock
  • SKU: 0638 | DAA178
  • Rs. 295.00 (inc GST)
    Rs.250.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IRG4BC30UD Ultra-Fast CoPack IGBT

IRG4BC30UD is an IGBT with Ultrafast Soft Recovery Diode.

Features of IRG4BC30UD Ultra-Fast CoPack IGBT

  • Ultra-Fast : Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode

  • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3

  • IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations

  • Industry standard TO-220AB package

  • Generation -4 IGBT's offer highest efficiencies available

  • IGBTs optimized for specific application conditions

  • HEXFRED diodes optimized for performance with IGBTs . Minimized recovery characteristics require less/no snubbing

  • Designed to be a "drop-in" replacement for equivalent industry-standard Generation 3 IR IGBTs

  • Collector-to-Emitter Voltage (VCES) 600 V

  • Continuous Collector Current (IC @ TC = 25°C ) 23Amp

  • Continuous Collector Current (IC @ TC = 100°C) 12Amp

  • Pulsed Collector Current ( ICM) 92 Amp

  • Clamped Inductive Load Current (ILM)92Amp

  • Diode Continuous Forward Current (IF @ TC = 100°C) 12Amp

  • Diode Maximum Forward Current (IFM) 92Amp

  • Gate-to-Emitter Voltage (VGE) ± 20 V
