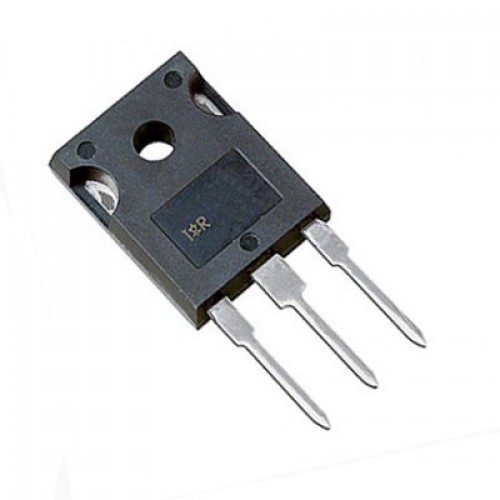

Product Images are shown for illustrative purposes only and may differ from actual product.

IRG4PC40UD Ultra-Fast CoPack IGBT

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • SKU: 639 | DAA177

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 295.00 (inc GST)
    Rs.250.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

IRG4PC40UD Ultra-Fast CoPack IGBT Power Module

IRG4PC40UD IGBT with ultra-fast diode, 600V VCES, 40A continuous current, optimized for high frequency applications.

The IRG4PC40UD Ultra-Fast CoPack IGBT is designed for high efficiency in power applications. This IGBT features a co-packaged HEXFRED ultra-fast diode, allowing for soft recovery characteristics and optimized performance in bridge configurations. With a collector-to-emitter voltage of 600V and a continuous collector current of 40A, the IRG4PC40UD is perfect for high-frequency operations ranging from 8-40 kHz in hard switching and >200 kHz in resonant mode.
The IRG4PC40UD Ultra-Fast CoPack IGBT stands out with its Generation 4 design, ensuring tighter parameter distribution and enhanced efficiency compared to previous generations. Its industry-standard TO-247AC package makes it a suitable drop-in replacement for Generation 3 IGBTs. This makes it a reliable choice for various applications where high efficiency and performance are required.
Ideal for industrial use, the IRG4PC40UD is perfect for applications needing robust power handling and minimal recovery times. Whether in motor drives, power supplies, or renewable energy systems, this IGBT module offers the reliability and performance you need.
Explore the world of high-performance power solutions with DNA. The IRG4PC40UD Ultra-Fast CoPack IGBT from a leading Manufacturer ensures optimal efficiency for your projects. Check other "MOSFET & IGBT" that we have in stock.
At DNA, we cater to all your electronic component needs. If you're looking for specific parts like MOSFETs, Inductors, or even Microcontrollers, we can help. We can also import components not currently in stock. Contact Us.

Features of IRG4PC40UD Ultra-Fast CoPack IGBT

  • Ultra-fast soft recovery diode
  • High efficiency at 8-40 kHz
  • Industry-standard TO-247AC package
  • Optimized for high-frequency applications
  • Drop-in replacement for Generation 3 IGBTs.

Specification of IRG4PC40UD Ultra-Fast CoPack IGBT

  • Collector-to-Emitter Voltage VCES 600 V
  • Continuous Collector Current (IC @ TC = 25°C) 40 Amp
  • Pulsed Collector Current (ICM) 160 Amp
  • Maximum Power Dissipation (PD @ TC = 25°C) 160W.

Applications of IRG4PC40UD Ultra-Fast CoPack IGBT

  • Motor drives
  • Power supplies
  • Renewable energy systems
  • Industrial automation
  • High-frequency switching applications.

Related Links for IRG4PC40UD Ultra-Fast CoPack IGBT Power Module

Package Includes

  • 1 X IRG4PC40UD Ultra-Fast CoPack IGBT Power Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
