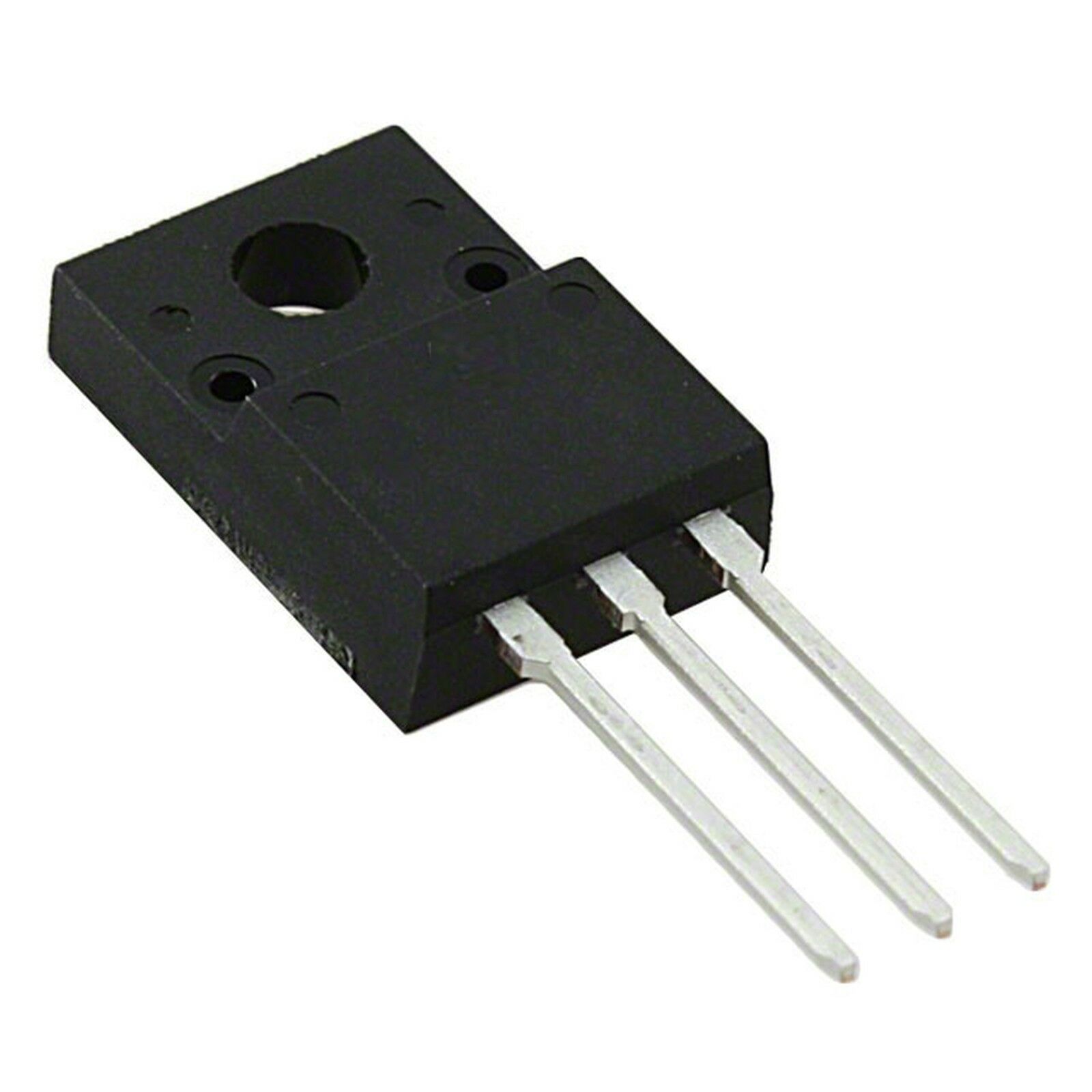

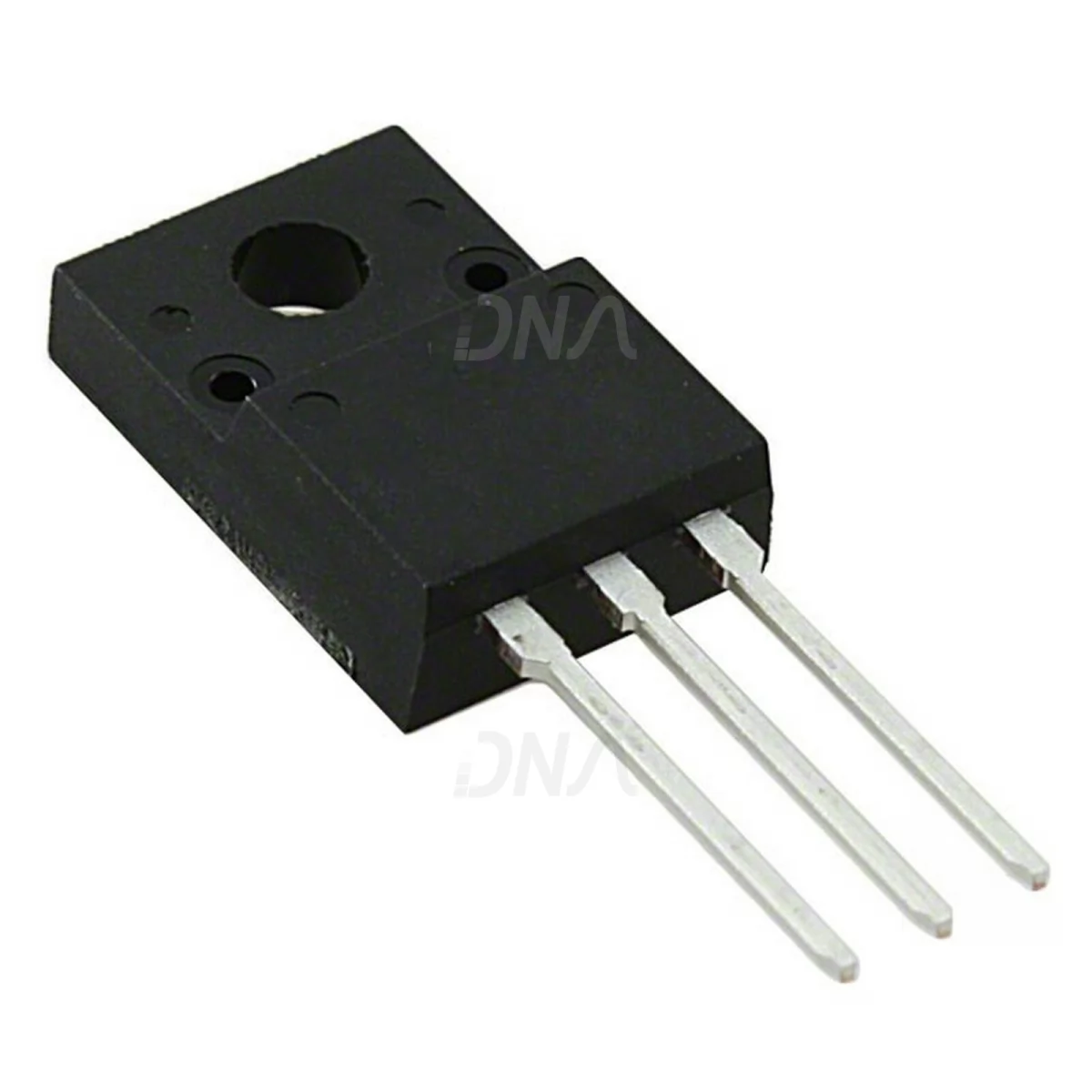

STGF19NC60KD 20 Ampere IGBT

Write a review | 0 reviews

Stock: 6
Availability: InStock priceValidUntil: 2026-11-26
Brand: ST Microelectronics
SKU: 2385 | DAC212

Rs. 256.65 (inc GST)
Rs.217.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

IGBT STGF19NC60KD 20A

STGF19NC60KD IGBT, 20A, 600V, features low on voltage drop and short-circuit withstand time.

The IGBT STGF19NC60KD 20A is a powerful 20 Ampere, 600 Volt IGBT designed for high-performance applications. Utilizing advanced PowerMESH™ technology, it offers a great balance between fast switching and low on-state voltage. The STGF19NC60KD features a low CRES/CIES ratio, minimizing cross-conduction risks. This IGBT is co-packaged with an ultrafast freewheeling diode for enhanced performance.

Ideal for high frequency inverters and motor drive applications, the STGF19NC60KD ensures reliability and efficiency. Its compact TO-220FP package allows for easy integration into various electronic systems. With a short-circuit withstand time of 10 μs, it provides robust protection under extreme conditions.

Choose the IGBT STGF19NC60KD 20A for your next project, and experience reliable performance in demanding applications. With its low on voltage drop, it is an excellent choice for energy-efficient designs.

Explore quality MOSFET & IGBT options at DNA, featuring the reliable STMicroelectronics brand. Enhance your designs with our range of MOSFET & IGBT products. Check other "MOSFET & IGBT" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import parts that are not available and support both retail and bulk orders. Consider our related items like Sensor Module, Capacitor, Analog IC, Transistor, Hongfa Relay, and Development boards. Contact Us.

Features of IGBT STGF19NC60KD 20A

Low on voltage drop (VCE(sat))
Low CRES / CIES ratio
Short-circuit withstand time 10 μs
Co-packaged with ultrafast freewheeling diode

Specification of IGBT STGF19NC60KD 20A

Manufacturer: STMicroelectronics
Product Category: IGBT Transistor
Technology: Si
Height: 9mm
Length: 10.4mm
Width: 4.6mm

Applications of IGBT STGF19NC60KD 20A

High frequency inverters
Motor drives

Package Includes

1 X IGBT STGF19NC60KD 20A

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
