LM393 SMD IC

Write a review | 0 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-10-18
SKU: 1864 | DAB631

Rs. 12.98 (inc GST)
Rs.11.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

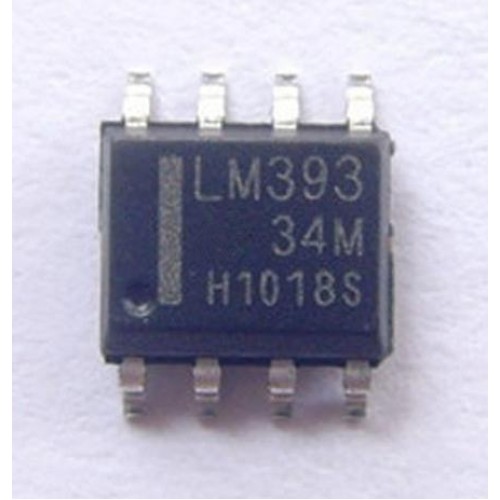

LM393 SOIC 8 SMD IC

LM393 Dual Differential Comparators

These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage.

Features Of LM393 SMD IC

Single-Supply or Dual Supplies
Wide Range of Supply Voltage
Low Supply-Current Drain Independent of Supply Voltage : 0.4 mA (Typical) Per Comparator
Low Input Bias Current : 25 nA (Typical)
Low Input Offset Current : 3 nA (Typical)
Low Input Offset Voltage : 2 mV (Typical)
Common-Mode Input Voltage Range Includes Ground
Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage : ±36 V
Low Output Saturation Voltage
Output Compatible With TTL, MOS, and CMOS

Applications Of LM393 SMD IC

Battery Powered Application
Industrial Application

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
