• HCPL A316J Gate Drive Optocoupler (SO16)

Product Images are shown for illustrative purposes only and may differ from actual product.

HCPL A316J Gate Drive Optocoupler (SO16)

  • Stock: 15
  • SKU: 2982 | DAE693
  • Rs. 283.20 (inc GST)
    Rs.240.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

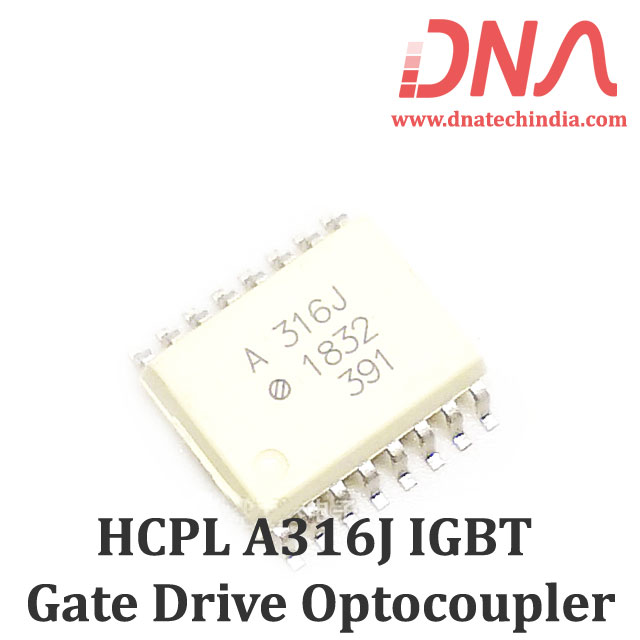

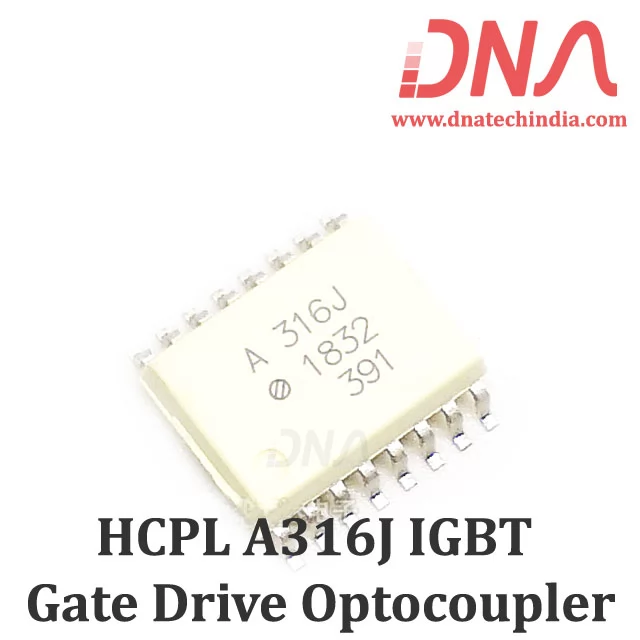

HCPL A316J Gate Drive Optocoupler

HCPL A316J 2.5 Ampere Gate Drive Optocoupler with Desaturation Detection and fault status feedback

HCPL A316J IC is Avago’s 2.5 Amp Gate Drive Optocoupler with Integrated Desaturation (VCE) Detection and Fault Status Feedback makes IGBT VCE fault protection compact, affordable, and easy-to-implement while satisfying worldwide safety and regulatory requirements. The HCPL-316J is an easy-to-use, intelligent gate driver which makes IGBT VCE fault protection compact, affordable, and easy-to-implement. Features such as user configurable inputs, integrated VCE detection, under voltage lockout (UVLO), “soft” IGBT turn-off and isolated fault feedback provide maximum design flexibility and circuit protection.

We have various types of Optocoupler IC's. Check our complete collection of Optocouplers & Optoisolator IC.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HCPL A316J IGBT Gate Drive Optocoupler

  • 2.5 A maximum peak output current
  • Drive IGBTs up to IC = 150A, VCE = 1200V
  • Optically isolated, FAULT status feedback
  • SO-16 package
  • CMOS/TTL compatible
  • 500 ns max. switching speeds
  • “Soft” IGBT turn-off
  • Integrated fail-safe IGBT protection
  • User configurable: inverting, noninverting, auto-reset,auto-shutdown
  • Wide operating VCC range: 15 to 30 Volts
  • -40°C to +100°C operating temperature range
  • 15 kV/µs min. Common Mode Rejection (CMR) at VCM=1500V
  • Regulatory approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5 (1414Vpeak Working Voltage)

                                      Applications of HCPL A3020 IGBT Gate Drive Optocoupler

                                      • Isolated IGBT/Power MOSFET gate drive
                                      • AC and brushless DC motor drives
                                      • Inverters for appliances
                                      • Industrial inverters
                                      • Switch Mode Power Supplies (SMPS)
                                      • Uninterruptable Power Supplies (UPS)

                                      Package Includes

                                      1 x HCPL A316J IGBT Gate Drive Optocoupler

                                      Extra Information
                                      Country of Origin China
                                      Imported By ElectroSource Private Limited
