5 volt PCB Mounting DPDT RELAY

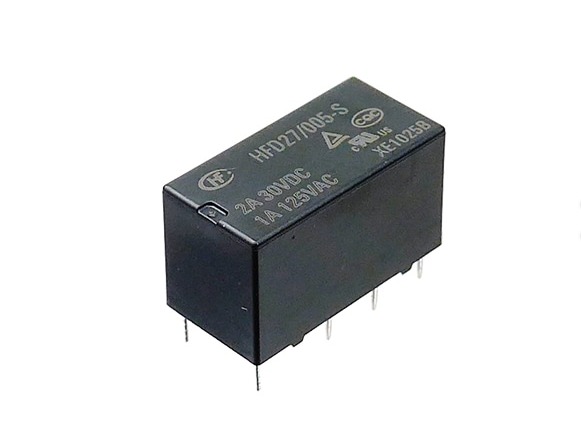

Hongfa HFD 27-005S 5 Volt Telecom Relay ( DIP relay)

This is a sub-miniature 5 volt Double Pole Double Throw (DPDT) PCB mounting relay also known as Telecom relay. This is a compact relay that fits into a 16 PIN IC base.

Specifications of HFD 27005-S subminiature DIP Relay

• Part Number : HFD27005S

• Type Of Relay : Electromagnetic

• Contacts configuration : DPDT (Double pole double throw)

• Rated coil voltage : 5 Volt DC

• AC contacts rating @R  (at resistance load) : 1 Ampere / 125VAC

• DC contacts rating @R  (at resistance load) : 2 Ampere / 30 Volt DC

• Contact current max. : 2 Ampere

• Switched voltage : max 240 Volt AC, max 120 Volt DC

• Relay variant : subminiature

• Mounting : PCB (16 PIN IC base)

• Coil resistance : 125Ω

• Coil voltage min. : 3.75 Volt DC

• Coil voltage max. : 10 Volt DC

• Operate time : 7ms

• Body dimensions : 20.2 x 10 x 11.5 mm

• Release time : 4ms

• Coil power consumption : 200 mW

• Operating temperature : -40...85°C

• Contact resistance : 100mΩ

• Contact material : AgNi + Au

• Terminal pitch : 5.08mm

Features of HFD 27005-S Telecom Relay

• 2 Form C configuration

• High Switching capacity 125VA/60W

• Matching 16 PIN IC socket

• Bifurcated Contacts

• Epoxy Sealed for automatic wave soldering and cleaning

• Environmental friendly product (ROHS compliant)
