  • IR2130 3-Phase Bridge Driver

Product Images are shown for illustrative purposes only and may differ from actual product.

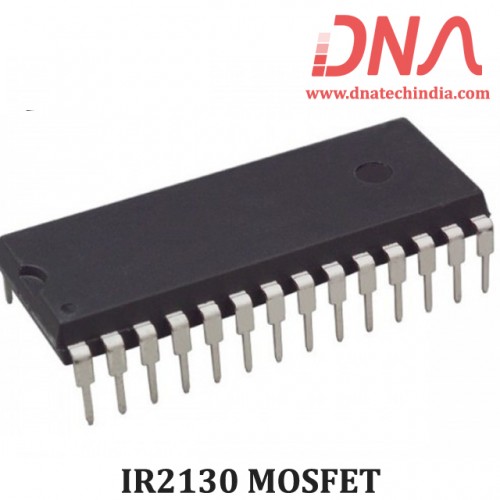

IR2130 3-Phase Bridge Driver

  • Product Code: 708
  • Availability: Out Of Stock
  • Price :

    Rs.442.50 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

IR2130 3-Phase Bridge Driver

The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. A ground-referenced operational amplifier provides analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs is also derived from this resistor. An open drain FAULT  signal indicates if an over-current or under voltage shutdown has occurred. The IR2130 output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use at high frequencies. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operate up to 600 volts.

Features IR2130 3-Phase Bridge Driver

  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

  • Gate drive supply range from 10 to 20V

  • Under voltage lockout for all channels

  • Over-current shutdown turns off all six drivers

  • Independent half-bridge drivers

  • Matched propagation delay for all channels

  • 2.5V logic compatible

  • Outputs out of phase with inputs

  • Cross-conduction prevention logic

  • Also available LEAD-FREE
