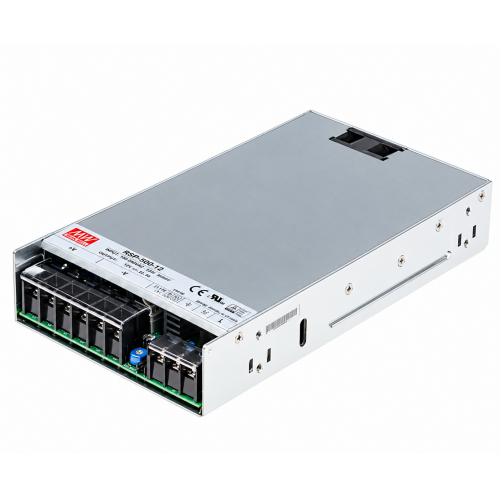

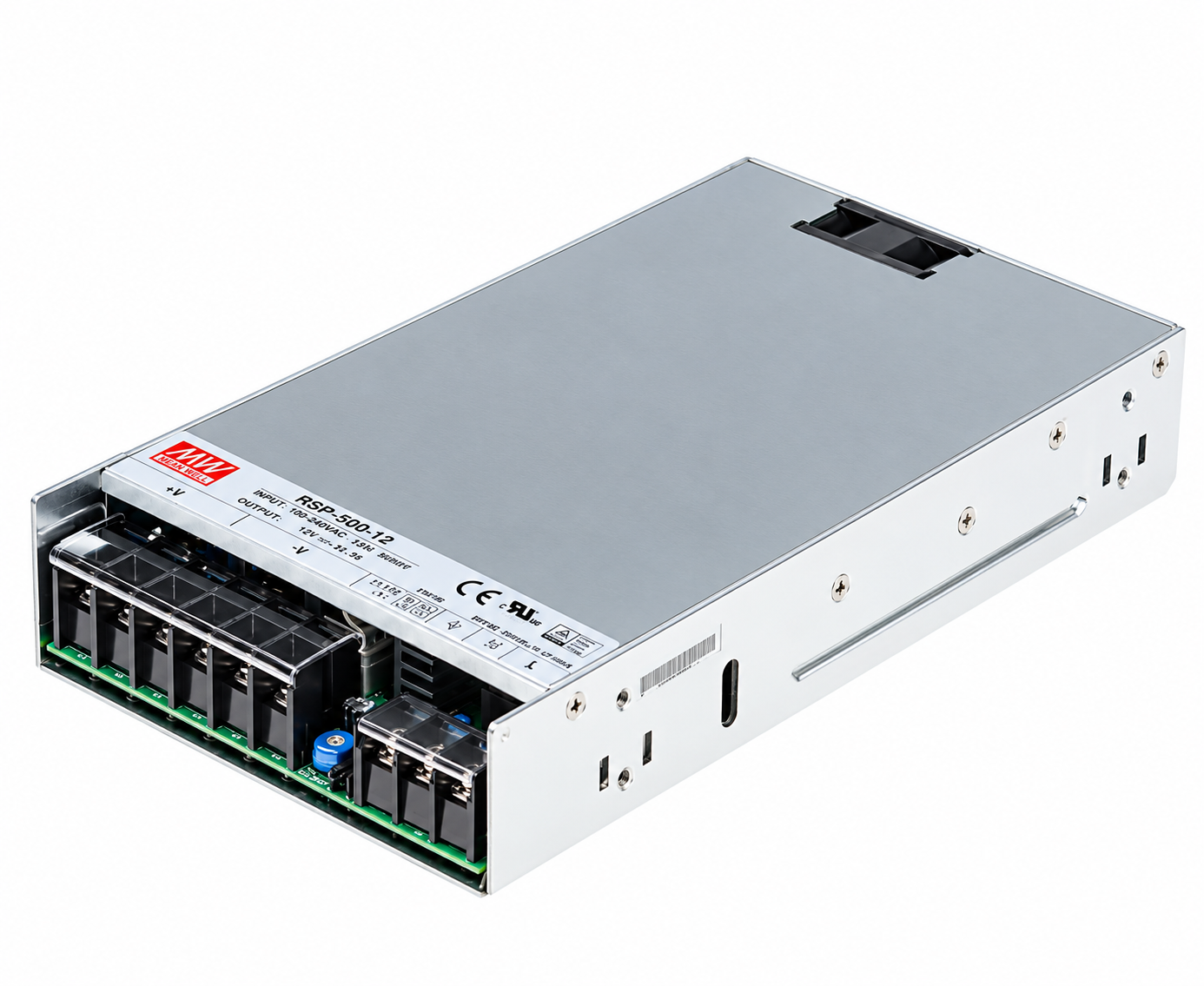

Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply

Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply

Mean Well RSP-500-12 enclosed AC-DC power supply with 12 V DC output, 41.7 A rated current, 500.4 W rated power and active PFC.

The Mean Well RSP-500-12 is an enclosed, single-output AC-DC power supply. It converts AC or DC input power to a regulated 12 V DC output, with a rated current of 41.7 A and rated power of 500.4 W. Active PFC supports power factor correction across a wide input range.

Remote ON/OFF control and remote sensing help connect the supply to system controls and manage output at the load. A built-in fan with speed control supports cooling, while short-circuit, overload, overvoltage and overtemperature protection help guard the supply. Its 1U low-profile design suits installations with limited height.

Use this 500 W AC-DC power supply in factory control and automation equipment, test and measurement instruments, laser-related machines, burn-in facilities and RF applications. The single-output design provides a 12 V supply for equipment built around that rail.

DNA stocks Mean Well power supplies for electronics projects and industrial equipment. Explore the Meanwell SMPS range to find a supply for your system. Check other Meanwell SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. Ask us about Hongfa Relay, SMPS, Development Module, Inductor, Digital IC and Capacitor options. Contact Us

Features of Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply

• Universal AC input with active PFC
• Remote ON/OFF control and remote sensing
• Built-in DC fan with fan-speed control
• Protection against short circuit, overload, overvoltage and overtemperature
• Enclosed metal case with a low-profile 1U design

Specifications of Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply

• Rated output voltage: 12 V DC
• Rated output current: 41.7 A
• Rated output power: 500.4 W
• Input voltage range: 85–264 VAC or 120–370 VDC
• Output voltage adjustment range: 10–13.2 V
• Typical efficiency: 88%
• Operating temperature: −30 to +70 °C, derating may be required
• Dimensions: 230 × 127 × 40.5 mm (L × W × H)

Applications of Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply

• Factory control or automation apparatus
• Test and measurement instruments
• Laser-related machines
• Burn-in facilities

Related Links for Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply

• Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well RSP-500-12 500 W Single-Output AC-DC Power Supply
