J5019 Li-Ion Charger with 4.5 to 24 Volts Boost Module

Name: J5019 Li-Ion Charger with 4.5 to 24 Volts Boost Module
SKU: DAE048
Price: 96.76 INR
Availability: OutOfStock
Rating: 5 (1 reviews)

Write a review | 1 reviews

Stock: Out Of Stock

SKU: 2628 | DAE048

Rs. 96.76 (inc GST)
Rs.82.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

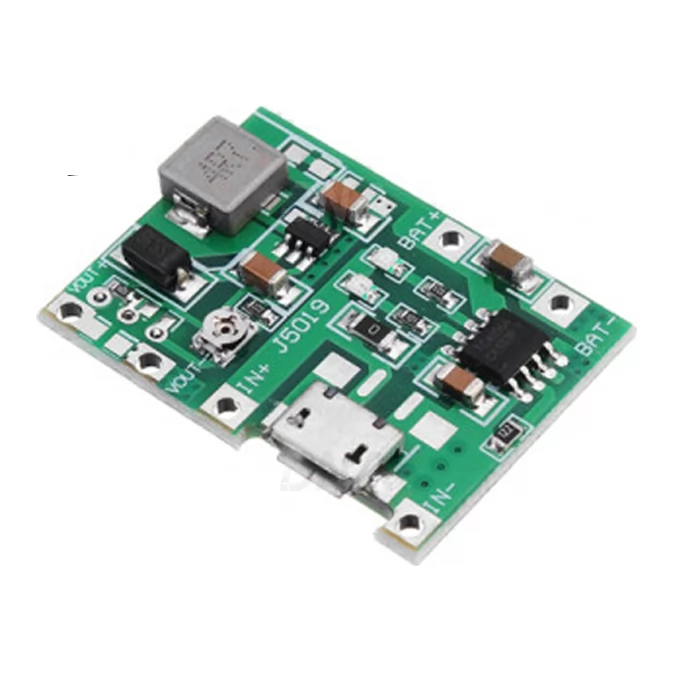

J5019 Li-ion 3.7/4.2 Volts Battery Charger Board + DC-DC Step Up Booster Module

Lithium Li-ion 18650 3.7 Volts 4.2 Volts Battery Charger Board with DC-DC Step Up Boost Module

J5019 module is a small single cell lithium battery charging module which also includes a 1 Ampere step-up (boost) converter for powering a large range of applications. The module will charge most types of single cell (3.7 V) LiPo batteries from either 4 to 8 Volts power supply input, or from a standard 5 Volts USB port/adapter. A battery charge and standby LED is also included for visual indication.

Besides battery charging capabilities this module also includes an adjustable boost converter which is capable of stepping up the attached battery voltage from 4.5 to 24 Volts with a maximum supply current of 1 Ampere.

We have various types of Battery Chargers and BMS Modules . Check our complete collection of Battery Chargers and BMS Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification of J5019 Li-Ion Charger with 4.5 to 24 Volts Boost Module

Input Voltage (USB) : 5 Volts
Input Voltage (IN) : 4 - 8 Volts
Battery Type : LiPo 3.7 Volts
Default Charging Current : 1000 mA
Output Voltage : 4.5 - 24 Volts
Max Output Current : 1 Ampere
Dimensions : 33 x 24mm
Weight : 6 G

Package Include

1 x J5019 Li-Ion Charger with 4.5 to 24 Volts Boost Module
