  • DC Voltage sensor Module

Product Images are shown for illustrative purposes only and may differ from actual product.

DC Voltage sensor Module

  • Stock: 3
  • SKU: 1393 | DAA788
  • Rs. 95.58 (inc GST)
    Rs.81.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

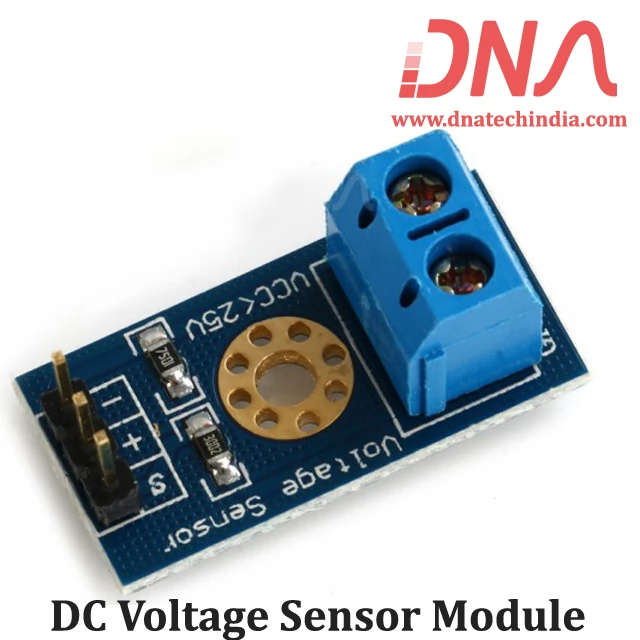

DC Voltage sensor Module

This DC Voltage Sensor Module is essentially a 5:1 potential divider circuit built using precession resistors for high accuracy.

The Arduino analog input is limited to a 5 VDC input.  If you wish to measure higher voltages,this module allows you to measure voltages of 0-25V. Keep in mind, you are restricted to voltages that are less than 25 volts. More than that and you will exceed the voltage limit of your Arduino input.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of DC Voltage sensor Module:

  • Voltage input range : DC 0-25 V;

  • Operating voltage output : 3.3V – 5V MAX

  • Voltage detection range : DC0.02445V - 25V

  • Voltage analog resolution : 0.00489

  • Output Interface : "+ " connected 5/3.3V, "-" connected GND, "s" connected Arduino AD pins

  • DC input interface : red terminal positive with VCC, negative with GND

Related Links

Related Video

  • How to use Voltage sensor Module Tutorial:
