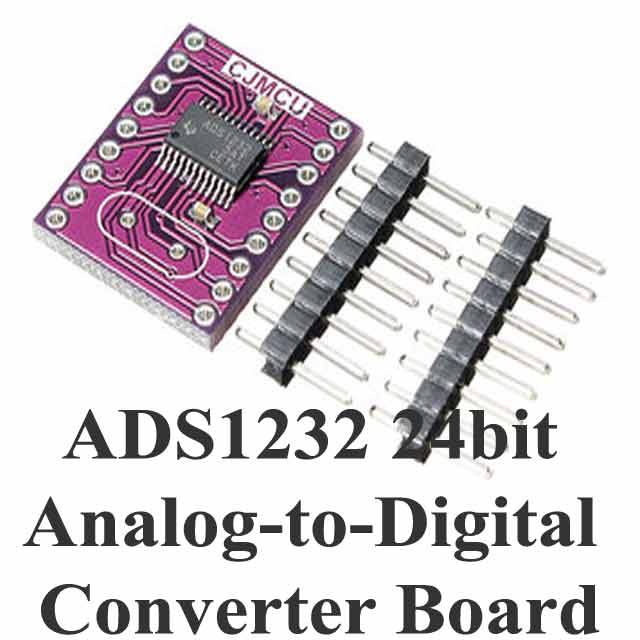

CJMCU-1232 ADS1232 24 Bit Analog-to-Digital Converter Board


Write a review | 1 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-04-06

  • SKU: 3256 | DAD354

Availability: InStock priceValidUntil: 2026-04-06

  • Rs. 849.60 (inc GST)
    Rs.720.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

CJMCU-1232 ADS1232 24 Bit Analog-to-Digital Converter Board

CJMCU-1232 ADS1232 24bit Analog-to-Digital Converter Board

ADS1232 24Bit Analog-To-Digital Converter Board is precision 24-bit analog-to-digital converters (ADCs). With an onboard, low-noise programmable gain amplifier (PGA), precision delta-sigma ADC and internal oscillator, the ADS1232/4 provide a complete front-end solution for bridge sensor applications including weigh scales, strain gauges and pressure sensors.

The input multiplexer accepts either two (ADS1232) or four (ADS1234) differential inputs. The ADS1232 also includes an onboard temperature sensor to monitor ambient temperature. The onboard, low-noise PGA has a selectable gain of 1, 2, 64, or 128 supporting a full-scale differential input of ±2.5V, ±1.25V, ±39mV, or ±19.5mV. The delta-sigma ADC has 23.5-bit effective resolution and is comprised of a 3rd-order modulator and 4th-order digital filter. Two data rates are supported: 10SPS (with both 50Hz and 60Hz rejection) and 80SPS. The ADS1232/4 can be clocked externally using an oscillator or a crystal. There is also an internal oscillator available that requires no external components. Offset calibration is performed on-demand and the ADS1232/4 can be put in a low-power standby mode or shut off completely in power-down mode. All of the features of the ADS1232/4 are operated through simple pin-driven control. There are no digital registers to program in order to simplify software development. Data are output over an easily-isolated serial interface that connects directly to the MSP430 and other microcontrollers.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • Complete Front-End for Bridge Sensors
  • Up to 23.5 Effective Bits
  • Onboard, Low-Noise PG
  • RMS Noise
  • 17nV at 10SPS (PGA = 128)
  • 44nV at 80SPS (PGA = 128)
  • 19.2-Bit Noise-Free Resolution at Gain = 64
  • Over 100 dB Simultaneous 50Hz and 60Hz Rejection
  • Flexible Clocking
  • Low-Drift Onboard Oscillator (±3%) Optional External Crystal
  • Selectable Gains of 1, 2, 64, and 128
  • Easy Ratiometric Measurements—External Voltage Reference up to 5V
  • Selectable 10SPS or 80SPS Data Rates
  • Two-Channel Differential Input with Built-In Temperature Sensor (ADS1232)
  • Four-Channel Differential Input (ADS1234)
  • Simple Serial Digital Interface
  • Supply Range: 2.7V to 5.3V
  • -40°C to +105°C Temperature Range

Applications

  • Weigh Scales
  • Strain Gauges
  • Pressure Sensors
  • Industrial Process Control

Package Includes

1 x CJMCU-1232 ADS1232 24bit Analog-to-Digital Converter Board

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
