Product Images are shown for illustrative purposes only and may differ from actual product.

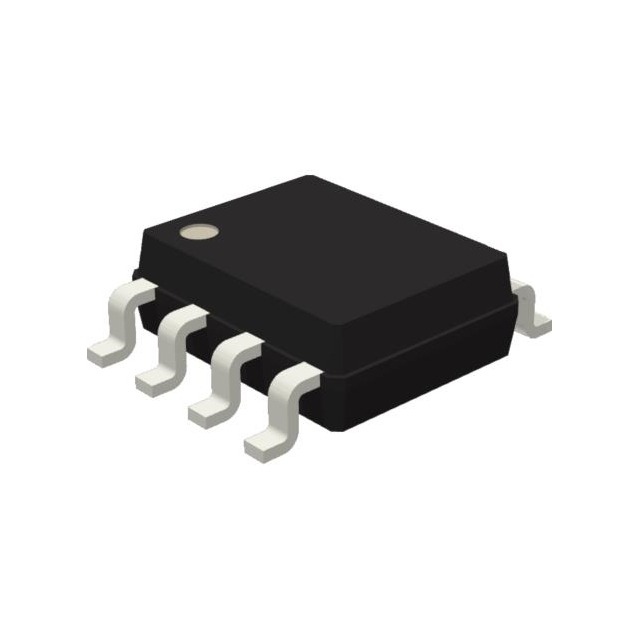

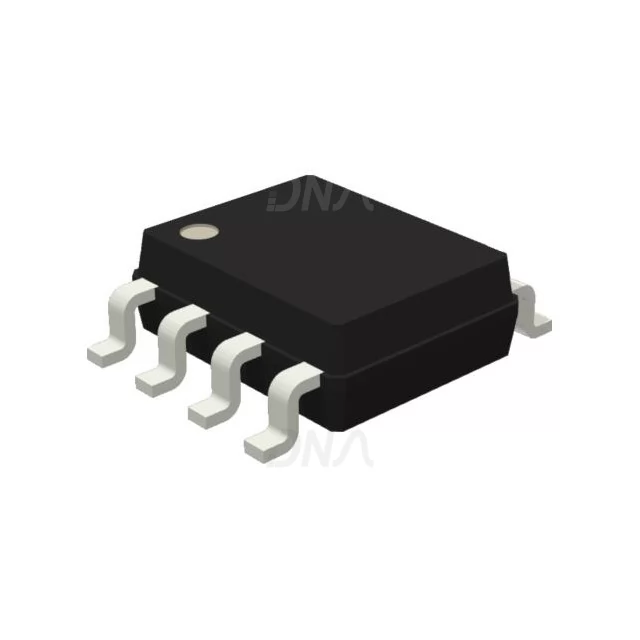

LS7184NS (SOIC) Encoder to Counter Interface SMD IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-31

  • SKU: 3965 | DAG665

Availability: NotInStock priceValidUntil: 2026-10-31

  • Rs. 1,003.00 (inc GST)
    Rs.850.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LS7184NS Encoder to Counter Interface SMD IC

LS7184NS Encoder to Counter Interface SMD IC with x1, x2, x4 resolution and TTL compatible I/Os.

The LS7184NS Encoder to Counter Interface SMD IC efficiently converts quadrature clock signals from encoders into usable outputs for counters. This product supports x1, x2, and x4 resolution and operates across a voltage range of 3V to 12V. Its programmable output pulse width ensures precision in various applications.

Designed for seamless integration, the LS7184NS features TTL and low voltage CMOS compatibility. This makes it suitable for interfacing incremental and rotary encoders with Up/Down counters and digital potentiometers. Its robust design allows for excellent regulation of output pulse width, enhancing reliability in performance.

Ideal for electronics projects and industrial applications, the LS7184NS Encoder to Counter Interface SMD IC is a versatile component for any electronics engineer. Explore its potential in position sensing and control systems today.

At DNA, we offer a diverse range of components from leading manufacturers like LS. The Components & IC's category features essential products for your electronic projects. Check other Components & IC's that we have in stock.

If you are searching for specific electronic components, reach out to DNA. We can help you find hard-to-get parts and provide support for both retail and bulk orders. Explore options like Digital IC, Analog IC, Microcontroller, and more. Contact Us.

Features of LS7184NS Encoder to Counter Interface SMD IC

  • x1, x2 and x4 resolution
  • Programmable output pulse width (200ns to 140μs)
  • TTL and low voltage CMOS compatible I/Os
  • +3V to +12V operation (VDD - VSS)

Specification of LS7184NS Encoder to Counter Interface SMD IC

  • SMD package
  • CMOS technology
  • Up/Down control output

Applications of LS7184NS Encoder to Counter Interface SMD IC

  • Interface incremental encoders to Up/Down Counters
  • Interface rotary encoders to Digital Potentiometers

Package Includes

  • 1 X LS7184NS (SOIC) SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
