PCB Ruler


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-14

  • SKU: 1598 | DAB049

Availability: NotInStock priceValidUntil: 2026-11-14

  • Rs. 200.60 (inc GST)
    Rs.170.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Clone PCB Ruler

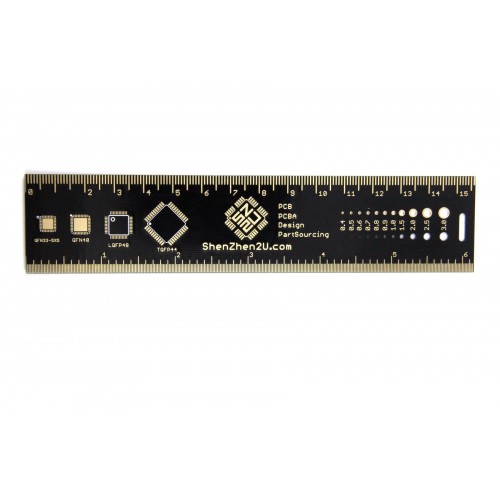

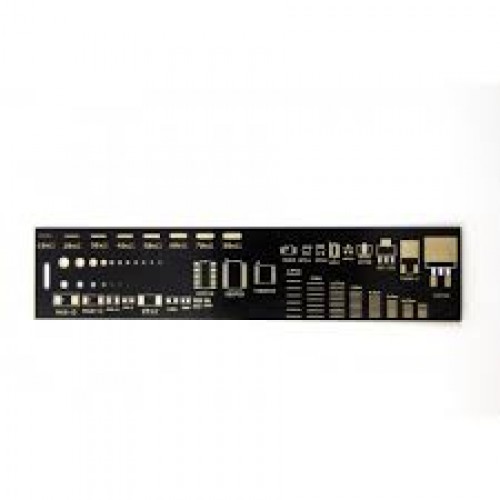

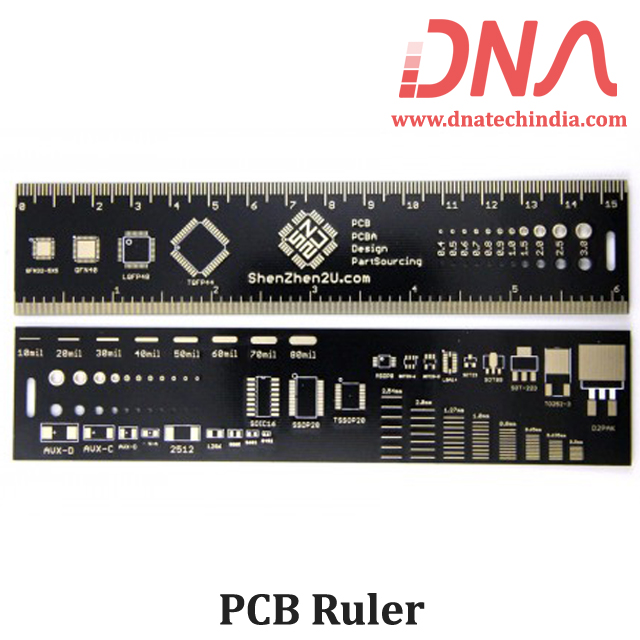

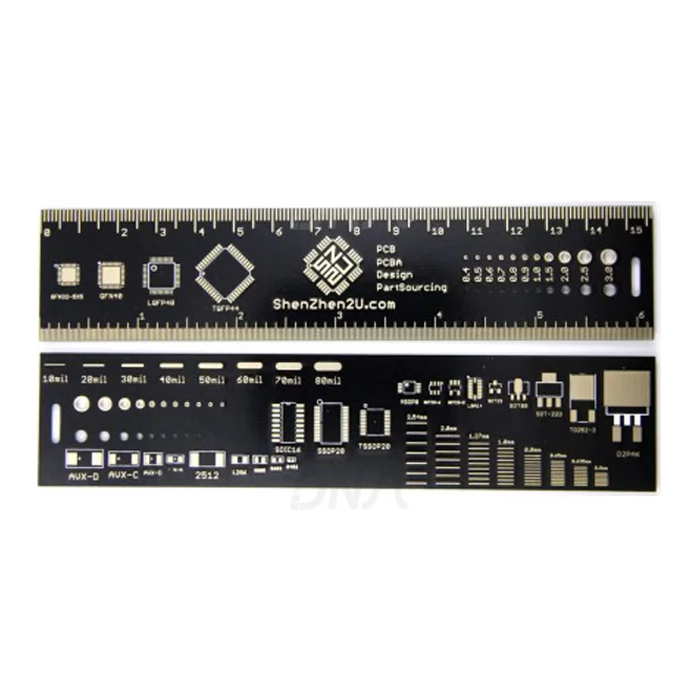

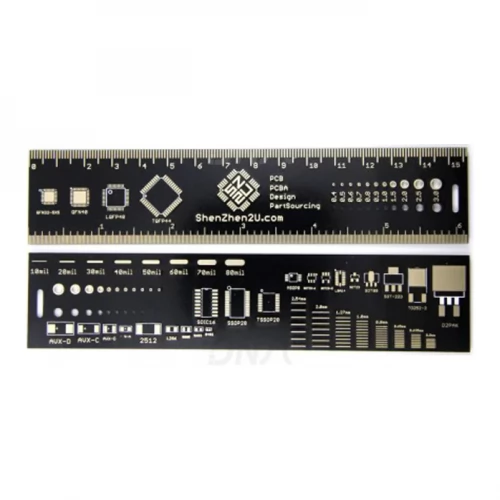

Clone PCB Ruler for SMD packages and footprints with various hole sizes and trace widths.

The Clone PCB Ruler is an essential tool for PCB design and measurement. It simplifies the process of checking PCB footprints and SMD package sizes, making it ideal for engineers and hobbyists alike. This ruler features a range of common component sizes, including QFN, LQFP, SOIC, and more, ensuring you have the right measurements at your fingertips.

Built with FR4 material and a thickness of 1.2mm, this ruler is durable and reliable. Its dimensions of 15.6cm x 3.4cm make it easy to handle while providing clear markings for accurate measurements. The Clone PCB Ruler also includes various trace widths and hole sizes, catering to diverse design needs.

Whether you're designing PCBs or working on electronic projects, the Clone PCB Ruler is a must-have tool. Experience precision in your designs and streamline your workflow with this practical ruler. Perfect for both professionals and hobbyists, it is an indispensable addition to your electronic toolkit.

Explore high-quality tools from DNA, the trusted retailer for the Brand in the Hardware category. Enhance your projects with precision tools and see other products in this category. Check other "Hardware" that we have in stock.

If you are searching for specific electronic components, we can help. Reach out to us for hard-to-find parts, and we can also import items if needed. We support both retail and bulk orders. Check out our selection of connectors, microcontrollers, resistors, and more. Contact Us.

Features of Clone PCB Ruler

  • Durable FR4 material
  • Clear markings for SMD packages
  • Multiple trace widths and hole sizes

Specification of Clone PCB Ruler

  • Size: 15.6cm x 3.4cm
  • Thickness: 1.2mm
  • Various component package sizes: QFN, LQFP, SOIC, etc.

Applications of Clone PCB Ruler

  • PCB design
  • Electronic prototyping
  • Measurement of SMD footprints
  • Hobby electronics projects

Package Includes

  • 1 X Clone PCB Ruler
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
