Cytron Driver HAT-MDD10

Cytron Driver HAT-MDD10 10A Motor Driver

HAT-MDD10 Motor Driver for Raspberry Pi; 10A continuous current; 6V to 24V operation.

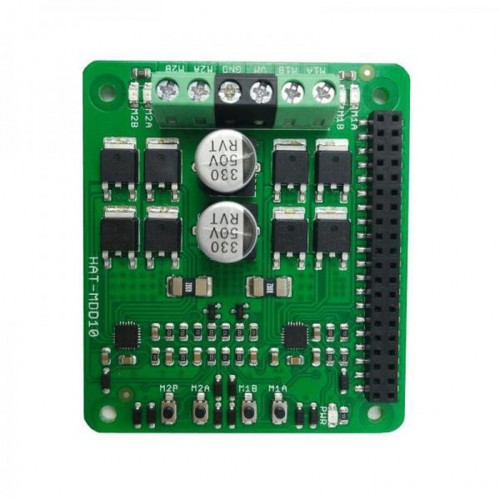

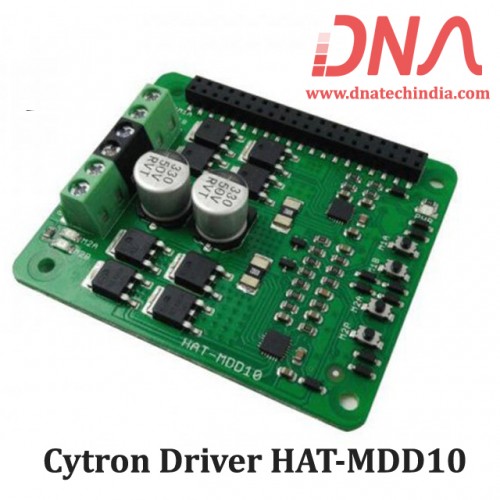

The Cytron Driver HAT-MDD10 is a robust motor driver designed specifically for Raspberry Pi. This unit can control two brushed DC motors with a continuous current of 10A and a peak of 30A, making it ideal for various applications. It supports motor voltage ranges from 6V to 24V and utilizes solid state components for faster response times, eliminating mechanical relay wear. The Cytron Driver HAT-MDD10 also features current limiting sensors to protect against overcurrent, ensuring reliable operation.

This motor driver is perfect for robotics, automation, and DIY projects. The onboard test button allows for manual motor control, while the LED indicators provide clear feedback on channel output. With support for sign-magnitude PWM operation and a PWM frequency of up to 20KHz, the Cytron Driver HAT-MDD10 offers precise speed control and direction management for your motors.

Explore the potential of the Cytron Driver HAT-MDD10 in your projects. Its efficient design, featuring a fully NMOS H-Bridge, requires no additional heat sinks, making it an excellent choice for compact applications. The compatibility with Raspberry Pi opens up a world of possibilities for enthusiasts and professionals alike.

Discover the reliability of the Motor Driver category at DNA. With the Cytron brand, we offer top-quality motor drivers. Explore our collection for your electronic needs. Check other Motor Driver that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find specific parts, reach out to us. We can import items and support both retail and bulk orders. Don't forget to check out related components like Resistors, Diodes, and DC to DC Converter Modules. Contact Us

Features of Cytron Driver HAT-MDD10

• Bi-directional control for two brushed DC motors
• Supports motor voltage from 6VDC to 24VDC
• Maximum current up to 10A continuous (without heatsink)
• Current limiting at 30A
• Onboard test button for manual control
• LED indicators for each channel
• Speed control PWM frequency up to 20KHz
• Solid state components for faster response
• Fully NMOS H-Bridge design

Specification of Cytron Driver HAT-MDD10

• Motor voltage range: 6VDC - 24VDC
• Continuous current: 10A
• Peak current: 30A
• PWM frequency: up to 20KHz
• Dimensions: 67.5mm x 59mm

Applications of Cytron Driver HAT-MDD10

• Robotics
• Automation systems
• DIY electronics projects
• Motor control applications
• Raspberry Pi projects

Related Links for Cytron Driver HAT-MDD10 10A Motor Driver

• Other Products from Motor Driver Category

Package Includes

• 1 X Cytron Driver HAT-MDD10
