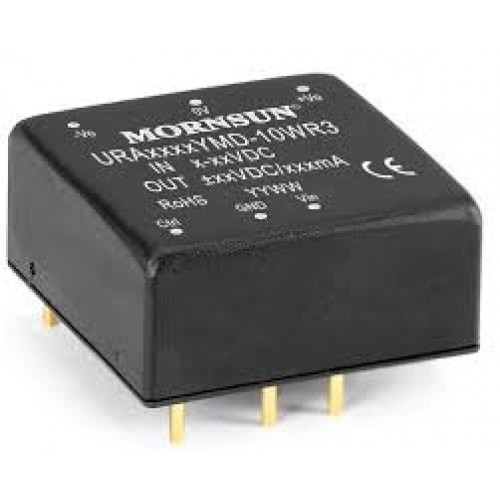

MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-12-18

  • Brand: Mornsun
  • SKU: 7651 | DAH507

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 1,132.97 (inc GST)
    Rs.960.14 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module

MORNSUN URA4812YMD-10WR3 isolated DC-DC converter module with 48 VDC input, dual ±12 VDC outputs, 10 W power and 1500 VDC isolation.

The MORNSUN URA4812YMD-10WR3 is an isolated DC-DC converter module for systems that need a dual output supply. It converts a nominal 48 VDC input to regulated ±12 VDC outputs and provides 10 W of rated output power. Input-to-output isolation helps separate the input and output sides of a power system.
Its six-pin DIP package and aluminum-alloy case support integration into equipment designs. Built-in protection covers input under-voltage, output short circuit, over-current and over-voltage. Continuous short-circuit protection includes self-recovery. This dual ±12 VDC converter suits industrial control, instruments, communication equipment and railway applications, where one module can supply both positive and negative voltage rails.
DNA stocks Mornsun modules for engineers and electronics buyers seeking DC to DC Converter Modules for their designs. Check other DC to DC Converter Modules that we have in stock
Buying electronics in India? Contact DNA if you cannot find a part. We support imports and retail or bulk orders, including related items such as development boards, LCDs and microcontrollers. Contact Us

Features of MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module

  • Dual-output design supplies positive and negative voltage rails
  • Input-to-output isolation separates power-system sides
  • Built-in protection covers input and output fault conditions
  • Continuous short-circuit protection with self-recovery
  • Six-pin DIP package supports board integration
  • Aluminum-alloy case

Specifications of MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module

  • Nominal input voltage: 48 VDC
  • Input voltage range: 18–75 VDC
  • Output voltage: ±12 VDC, dual output
  • Maximum output current: ±416 mA per output
  • Rated output power: 10 W
  • Efficiency: 85% minimum, 87% typical at nominal input and rated load
  • Input-to-output isolation test voltage: 1500 VDC for 1 minute, leakage current no greater than 1 mA
  • Operating temperature: −40°C to +85°C, with output-power derating at elevated temperatures

Applications of MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module

  • Industrial control
  • Electric power equipment
  • Instruments
  • Communication equipment

Related Links for MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module

Package Includes

  • 1 X MORNSUN URA4812YMD-10WR3 Isolated DC-DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
