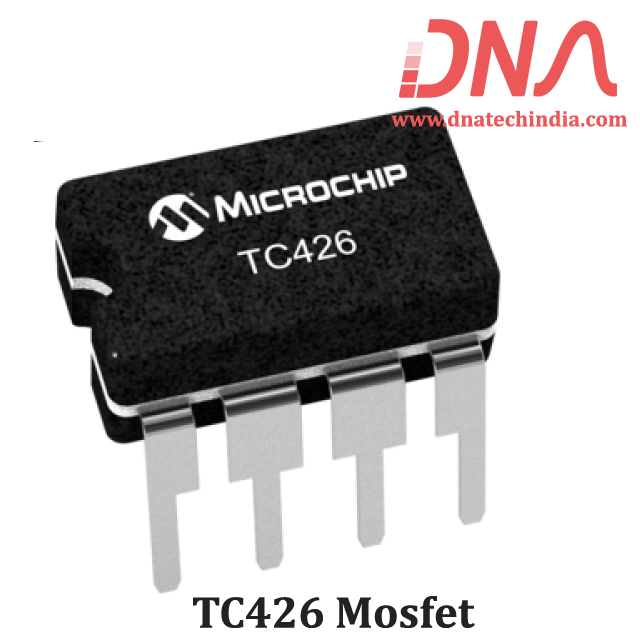

TC426 High-Speed Power MOSFET Drivers

TC426 High-Speed Power MOSFET Driver

TC426 Power MOSFET Driver with high-speed switching up to 30 nsec, 1.5A output current, and low input current of 1 μA.

The TC426 High-Speed Power MOSFET Driver is designed for efficient switching in various applications. This dual CMOS driver translates TTL/CMOS input voltage levels into a rail-to-rail output. It supports a wide supply voltage from 4.5V to 18V while maintaining a low quiescent current of 6 mA. Ideal for power MOSFET driving, it operates effectively with a load of 1000 pF in just 30 nsec.

With a high peak output current of 1.5A and low output impedance of 6Ω, the TC426 High-Speed Power MOSFET Driver ensures reliable performance in switch-mode power supplies and clock line drivers. Its pin-compatible design with the DS0026 and MMH0026 allows for easy integration into existing systems. The device is also ESD protected, making it suitable for various electronic applications.

Applications for the TC426 High-Speed Power MOSFET Driver include pulse transformer drives, coax cable drives, and clock line driving. Its unique features make it a valuable component for engineers looking to enhance the efficiency of their designs.

At DNA, we offer the TC426 High-Speed Power MOSFET Driver from a trusted Manufacturer in the MOSFET & IGBT category. Explore our extensive range of MOSFET & IGBT products to find the right components for your project. Check other "MOSFET & IGBT" that we have in stock.

Are you searching for specific electronic components? DNA can help! If you can't find certain parts, we can import them for you. We also support retail and bulk orders. Check out related items like Nextion Display, DC to DC Converter Module, and Development boards. Contact Us

Features of TC426 High-Speed Power MOSFET Driver

• High-speed switching of 30 nsec
• High peak output current of 1.5A
• Low input current of 1 μA
• Wide operating voltage of 4.5V to 18V
• ESD protection up to 2 kV

Specification of TC426 High-Speed Power MOSFET Driver

• Output voltage swing within 25 mV
• Low output impedance of 6Ω
• Quiescent current typically 6 mA
• Single supply operation
• Latch-up resistant

Applications of TC426 High-Speed Power MOSFET Driver

• Switch mode power supplies
• Pulse transformer drive
• Clock line driver
• Coax cable drive

Related Links for TC426 High-Speed Power MOSFET Driver

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X TC426 High-Speed Power MOSFET Driver
