Description

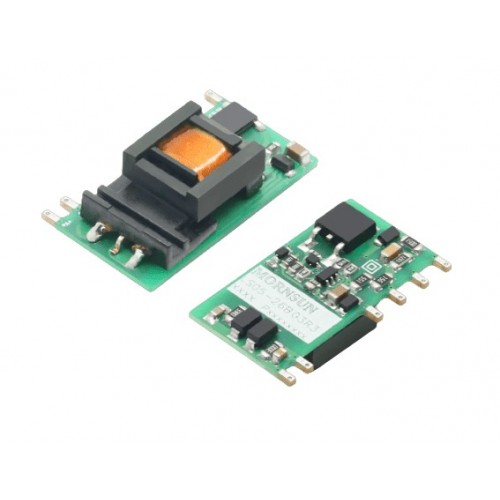

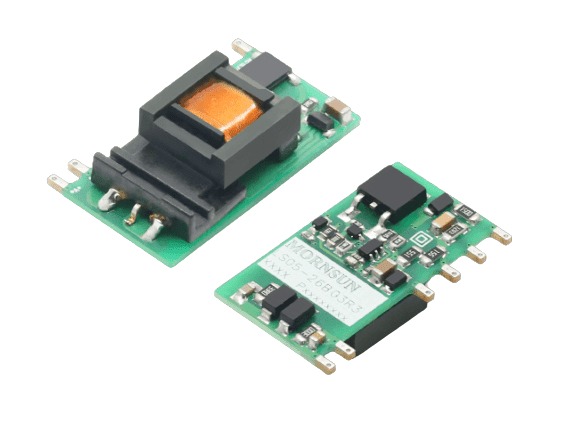

Mornsun LS05-26B05R3 5 W Isolated AC/DC Converter Module

Mornsun LS05-26B05R3 isolated AC/DC converter module with 5 W output, 5 V at 1 A, and 90–528 VAC or 100–745 VDC input.

The Mornsun LS05-26B05R3 is an isolated AC/DC converter module that accepts AC or DC input and provides a 5 V DC output. It delivers up to 5 W at 1 A and supports a wide input range for power designs that use different supply sources.

The module uses the same terminals for AC and DC input. Its input-to-output isolation helps separate the input supply from the output circuit. Short-circuit and over-current protection support safer operation, with self-recovery after these faults clear.

Designed for industrial control, electric power systems and instrumentation, this compact module brings isolated low-voltage power into equipment that needs a 5 V supply.

Shop Mornsun power modules through DNA, an Indian retailer of electronic components. Browse the Mornsun SMPS range for power conversion needs and find a module for your design. Check other Mornsun SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders across India. You can also ask about related items such as SMPS, DC to DC Converter ICs, capacitors and sensor modules. Contact Us

Features of Mornsun LS05-26B05R3 5 W Isolated AC/DC Converter Module

Accepts AC or DC input through the same terminals
Provides an isolated DC output
Short-circuit protection uses hiccup operation and self-recovery
Over-current protection resets after the fault clears
Supports operation from any two phases

Specifications of Mornsun LS05-26B05R3 5 W Isolated AC/DC Converter Module

Rated output power: 5 W
Nominal output voltage: 5 V
Rated output current: 1000 mA
Input voltage range: 90–528 VAC or 100–745 VDC
Input frequency: 47–63 Hz for AC input
Efficiency: 72% typical at 230 VAC input
Input-to-output isolation: 4000 VAC minimum for a 1-minute electric-strength test, leakage current below 5 mA
Operating ambient temperature: -40°C to +85°C, with output power derating

Applications of Mornsun LS05-26B05R3 5 W Isolated AC/DC Converter Module

Industrial control
Electric power systems
Instrumentation

Package Includes

1 X Mornsun LS05-26B05R3 5 W Isolated AC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
